Stainless Steel Pipe Bends
Supplies A Full Range Of 304 SS Bends, Stainless Steel Mandrel Bend, 3d pipe bend, Stainless Steel Piggable Bend At Factory Price In India, Check stainless steel long radius bends dimensions
Stainless steel peggable bends( Stainless Steel Pipe Bends) are offered by our company at high quality in India. These bends are used to connect pipes of different diameters. These are available in various specification, grades, shapes and thickness. These bends are widely use in the various industries.

Stainless Steel Pipe Bends

SS Long Radius bend

SS Piggable Bend
Table of contents
- Buttweld Pipe Bend standard specification
- stainless steel pipe bend radius chart
- what is mean by Stainless Steel Pipe Bends ?
- SS pipe bend price list
- stainless steel long radius bends Material
- Differences between Steel Pipe Bend VS Elbow
- ss pipe bending process
- Stainless Steel Pipe Bends Degrees
- pipe bending dimensional tolerances
- Tube bending capabilities
- Manufacturing standard of Steel Pipe Bends
- Tube Bending Troubleshooting
- SS pipe bend size chart
- weight chart of stainless steel pipe bend
- Pipe Bending Terms

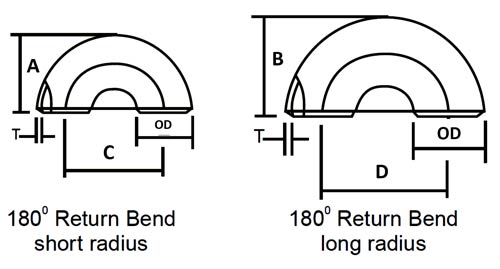

- stainless steel pipe bend dimensions
- ss long radius bend dimensions
- Cold Pipe Bending
- Ready Stock Of Pipe Bend
- Most frequent types of stainless steel pipe bend ?
- Stainless Steel Piggable Bend
- ss long bend
- stainless steel long radius bends
- Stainless Steel Mandrel Bend
- 2.5 stainless steel u bends
- SS 1.5d bend
- Stainless steel 2d pipe bend
- ANSI B16.9 3d pipe bend
- SS 5d pipe bend
- Stainless steel 6d pipe bends
- ASME B16.9 8d bends
- SS 10d pipe bend
- ASME B16.9 90 degree pipe bend
- Stainless steel 45 degree pipe bend
- SS short bend
- Stainless steel j bends
304 stainless steel u bends Manufacturers In India, suppliers of 1d pipe bend, 2d pipe bend, 90 degree pipe bend, Carries A Complete Line Of stainless steel return bends, SS short bend, View 5d radius bend dimensions
Our Reliable Pipes Tubes Ltd. long radius bends offer smoother, quieter flow and less back pressure in the conveying and provides less product damage. The other main benefit is that the weld seams on these bends run the length of bend, therefore, it has self-cleaning benefits. Our products are better quality and a more economical price. These bends are polished to specifications.
304 SS bends has a good image due to its high resistance this product is reliable to use for serving various engineering and applications.Stainless steel mandrel bends offer best solution for high exhaust performance. These bends ensure high velocity and flow. All types of mandrel bends are 1.5mm wall thickness and they are manufacture by seamless 304 stainless steel tube. These bends improve the air flow of the vehicle’s engine with the durable construction. It has smooth covering for quality performance, mandrel bending provides a strong, smooth ad seamless bend in the metal alloy.
- Outside Diameter: Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
- Wall Thickness: 3mm-40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
- Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
- Product Angle: 0° – 180°
- Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
- Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
- Manufacturing standard: AISI B16.49
- Material: Carbon steel, Alloy steel, Stainless steel
- Material standards: API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 & SOUR; ASTM A234 WPB, WPC, WP1, WP5, WP9, WP11, WP22, WP91; ASTM A403 304/304L, 316/316L.
- Outer Diameters: 1/2'' to 60''. DN15 to DN1500
- Radius range: R=2D, 2.5D, 3D, 5D, 6D, 8D
- Degree range: 45 degree, 60 degree, 90 degree and customized.
- Wall thickness: SCH 10, SCH 40, SCH80
- Coatings: Black paint, galvanized, epoxy coated, 3PE, FBE
16 Gauge Stainless Steel Bend Radius
Gauge |
Stainless Steel Minimum Bend Radius Includes Minimum Closeness of Cutout to Bend |
Stainless Bend Radius (Refers to Inner Radius) |
---|---|---|
11 gauge (0.120" |3.05mm) |
.5" |
.07", .08", .09", .1", .125" |
14 gauge (0.075" | 1.9 mm) |
.275" |
.05", .055", .062", .07", .075" |
.375" |
.07", .105" |
|
.5" |
.09", .11", .115", .12" |
|
1.375" |
.4" |
|
16 gauge (0.060" | 1.52 mm) |
.2" |
.035", .05" |
.265" |
.05", .055", .075", .08" |
|
.375" |
.07" |
|
.5" |
.105", .12" |
|
18 gauge (0.048" | 1.22 mm) |
.2" |
.04", .045", .05" |
.265" |
.06", .07", .08", .085" |
|
.375" |
.1", .125" |
|
.5" |
.115", .12" |
|
20 gauge (0.035" | 0.89 mm) |
.2" |
.05" |
.265" |
.06", .07" |
|
.375" |
.095" |
|
22 gauge (0.029" | 0.74 mm) |
.2" |
.05" |
.265" |
.04", .08" |
|
24 gauge (0.024" | 0.61 mm) |
.2" |
.04" |
.265" |
.08" |
Standard pipe |
Spec. |
Bauart 5 |
2,5D |
|
DN |
Diameter [ØD] |
CLR |
CLR |
CLR |
20 |
26,9 |
110 |
|
67 |
25 |
33,7 |
110 |
|
84 |
32 |
42,4 |
110 |
|
106 |
40 |
48,3 |
110 |
|
121 |
50 |
60,3 |
125 |
|
151 |
65 |
76,1 |
|
175 |
190 |
80 |
88,9 |
|
205 |
222 |
100 |
114,3 |
|
270 |
286 |
125 |
139,7 |
|
330 |
350 |
150 |
168,3 |
|
390 |
421 |
200 |
219,1 |
|
510 |
|
250 |
273 |
|
650 |
|
300 |
323,9 |
|
775 |
|
350 |
355,6 |
|
850 |
|
400 |
406,4 |
|
970 |
|
500 |
508 |
|
1245 |
|
Stainless steel pipe bends are available in several bend angles, they are obtained through the process of welding as they contain low carbon. The high amount of nickel content manage to prevent sensitization at grain boundaries. These are used to form piping or tubing system which contain 8% nickel and 18% chromium and most commonly used.
Materials | Price Range | Unit |
---|---|---|
SS Exhaust Pipe Mandrel Bend | $3.00-$5.00 | USD/Piece |
Galvanized pipe bends | $5.00-$7.00 | USD/Piece |
mandrel bends | $5.00-$7.00 | USD/Piece |
seamless 5D SS bend | $6.10-$7.60 | USD/Kilogram |
u bend pipe 304 SS pipe bend | $1.00-$999.00 | USD/Piece |
SS Pipe Bending | $1.00-$10.00 | USD/Piece |
Standard 304 SS 45 degree bend | $4.00-$50.00 | USD/Piece |
Duplexes SS S31803 pipe 90 degree bend | $11.00-$999.00 | USD/Piece |
Sanitary Vacuum SS pipe bend | $3.20-$6.00 | USD/Piece |
316 SS long radius 90 degree 10d pipe bend | $1.00-$20.00 | USD/Piece |
SS pipe fitting 45 degree pipe bend | $1.90-$73.90 | USD/Piece |
steel 3D pipe bend | $0.50-$100.00 | USD/Piece |
45 Degree SS GI Z275 Pre-galvanized Air Pipe Bend | $0.90-$18.00 | USD/Piece |
Sanitary SS Pipe Bend | $2.50-$100.00 | USD/Piece |
SS Piggable Bend | $1.00-$10.00 | USD/Piece |
Copper Nickel Piggable Bend | $30.50-$100.00 | USD/Piece |
Sanitary SS 180 degree pipe Bends | $0.50-$350.00 | USD/Piece |
schedule 80 carbon steel pipe fittings reducer | $0.90-$199.00 | USD/Piece |
30 degree SS bend pipe | $1000.00-$3000.00 | USD/Piece |
SS Pipe Fitting Tube Bend | $1.15-$100.00 | USD/Piece |
Carbon SS 5D Pipe Bends | $1.00-$90.00 | USD/Piece |
This is an approximate Cost of Stainless Steel Pipe Bends in India. For factory price buy directly from 304 SS Bends Manufacturers In India, check latest Stainless Steel Piggable Bend price list & stock sizes please mail us.
- Stainless Steel Bends; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
- Carbon Steel Bends: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
- Low Temperature Carbon Steel Bends: ASTM A420 WPL3, A420 WPL6
- Alloy Steel Bends: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
- Duplex Steel Bends: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
- Nickel Alloy Bends: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Buy Stainless Steel Weld Bends, ss long bend, 304 stainless steel mandrel bends At Factory Price In India, Stokholder of Schedule 10 Stainless steel pipe bends, ss schedule 40 pipe bends, Stainless steel j bends, Check 6d pipe bends, 5d pipe bend dimensions
Pipe bend and elbow both for change the pipe direction, still there are a lot of differences in below aspects:
- Bending Radius
- Manufacturing Processes
- Different cost
- Application scope
Bending Radius of Bend and Elbow
As we talked above,
Steel pipe bend radius: Above 2 times of D, so there are 2D, 2.5D, 3D, 5D, 6D, 7D or 8D pipe bend.
Steel pipe elbow radius: R=1D or R=1.5D or 2D. Below 1.5D is short radius elbow, and more than 1.5D but not over 2D is long radius elbow.
R is radius of curvature; D is (elbow or bend) pipe diameter.
Different of manufacturing processes
Bend: Could be bend directly from a finished pipe with cold bending processes, to different degrees.
Elbow: Shall be made according by standard manufacture procedures, with hot finishing or hot bending, to a certain degree, 45°, 90° or 180°.
Stainless Steel Piggable Bend
ss long bend
stainless steel long radius bends
Stainless Steel Mandrel Bend
2.5 stainless steel u bends
SS 1.5d bend
Stainless steel 2d pipe bend
ANSI B16.9 3d pipe bend
SS 5d pipe bend
Stainless steel 6d pipe bends
ASME B16.9 8d bends
SS 10d pipe bend
ASME B16.9 90 degree pipe bend
Stainless steel 45 degree pipe bend
SS short bend
Stainless steel j bends
The pipe bend is bent by a set of bending equipment with two processes: Cold simmering and hot pushing. (Including bending, squeezing, pressing, forging, machining and etc)
Pipe Bending Machine by Hot Push Manufacturing
Insert the straight pipe into pipe bending machine, heat the pipe and use lever (installed with different dimension of mould) to bend the pipe.
NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
---|---|---|---|---|---|---|---|---|---|
NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
½ to 2½ | 0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
5 to 8 | 0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
10 to 18 | 0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
20 to 24 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
26 to 30 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
32 to 48 | 0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0 |
NOMINAL PIPE SIZE NPS | ANGULARITY TOLERANCES | ANGULARITY TOLERANCES | ALL DIMENSIONS ARE GIVEN IN INCHES. TOLERANCES ARE EQUAL PLUS AND MINUS EXCEPT AS NOTED. |
---|---|---|---|
Off Angle Q | Off Plane P | (1) Out-of-round is the sum of absolute values of plus and minus tolerance. (2) This tolerance may not apply in localized areas of formed fittings where increased wall thickness is required to meet design requirements of ASME B16.9. (3) The inside diameter and the nominal wall thicknesses at ends are to be specified by the purchaser.(4) Unless otherwise specified by the purchaser, these tolerances apply to the nominal inside diameter, which equals the difference between the nominal outside diameter and twice the nominal wall thickness. |
|
½ to 4 | 0.03 | 0.06 | |
5 to 8 | 0.06 | 0.12 | |
10 to 12 | 0.09 | 0.19 | |
14 to 16 | 0.09 | 0.25 | |
18 to 24 | 0.12 | 0.38 | |
26 to 30 | 0.19 | 0.38 | |
32 to 42 | 0.19 | 0.50 | |
44 to 48 | 0.18 | 0.75 |
Bending Process |
|
||
Materials |
|
||
Fixturing | In-House Tooling Extensive Selection of Existing Tooling |
||
Tubing Outer Diameter | 0.0625″ to 7″ |
||
End Finishing Capabilities |
|
||
Additional Services |
|
||
Testing & Inspection |
|
||
Production Volume | Prototype Low Volume High Volume |
||
Lead Time | Quoted on a Job-by-Job Basis |
- ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
- DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
- EN: EN10253-1, EN10253-2
- ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
- ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
- ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
- MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
- Move the mandrel forward.
- Lower the pressure-die setting.
- Rake the wiper tip.
- 4Adjust the pressure-die assist setting as needed.
METRIC SIZES |
|
Outside Diameter (mm) | Wall (mm) |
4 | 1 |
6 | 1 |
8 | 1 |
10 | 1 |
12 | 1.5 |
15 | 1.5 |
16 | 2 |
18 | 1.5 |
20 | 2 |
22 | 2 |
25 | 2 |
28 | 2 |
30 | 3 |
35 | 3 |
38 | 4 |
42 | 3 |
IMPERIAL SIZES |
||
Outside Diameter (Inches) | Wall (SWG) | Wall (mm) |
3/16 | 22 | 0.71 |
1/4 | 20 | 0.91 |
5/16 | 20 | 0.91 |
3/8 | 18 | 1.22 |
1/2 | 16 | 1.63 |
5/8 | 16 | 1.63 |
3/4 | 14 | 2.03 |
7/8 | 14 | 2.03 |
1 | 10 | 3.25 |
1 1/4 | 10 | 3.25 |
1 1/2 | 10 | 3.25 |
2 | 10 | 3.2 |
WEIGHTS OF ELBOW FITTINGS | ||||||||
NPS inches |
ELBOWS LR 90° |
ELBOWS SR 90° |
||||||
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
Approximate weights in kg, density 8 kg/dm3 |

SS Short Bend for Railing, Size: 2 inch

Stainless Steel Bend, Size: 3/4 & 1 inch

Stainless Steel Dairy Bend, Size: 1/2 Inch

MMSC Stainless Steel 6 D Bend, Thickness: 5-8 Mm, for Structure Pipe

Stainless Steel Bend, for Structure Pipe, Thickness: 1 Mm

Round SS Stainless Steel Long Bends, Bend Radius: 1.5D, Size: 1/2 inch

Seamless SS U Bend, Thickness: 2 - 5 mm

SS Dairy Bend, Size: 1/2 to 8 inch
Here are a few of the terms you should know:
- 1.5D Bends
- 3D Bends
- 5D Bends
- Rolled Pipe
- Helical Coils
- Serpentine Coils
- Davit Arms
- Press Bending
- Rotary Draw Bending
- Roll Bending
- Three-Roll Push Bending
- Tube Bundles
- Hot Bending
- Cold Bending
NOMINAL PIPE SIZE | OUTSIDE DIAMETER | BACK TO FACE | CENTER TO CENTER | ||
---|---|---|---|---|---|
Inch. | OD | A | B | C | D |
1/2 | 21.3 | 48 | – | 76 | – |
3/4 | 26.7 | 43 | – | 57 | – |
1 | 33.4 | 56 | 41 | 76 | 51 |
1 1/4 | 42.2 | 70 | 52 | 95 | 64 |
1 1/2 | 48.3 | 83 | 62 | 114 | 76 |
2 | 60.3 | 106 | 81 | 152 | 102 |
2 1/2 | 73 | 132 | 100 | 191 | 127 |
3 | 88.9 | 159 | 121 | 229 | 152 |
3 1/2 | 101.6 | 184 | 140 | 267 | 178 |
4 | 114.3 | 210 | 159 | 305 | 203 |
5 | 141.3 | 262 | 197 | 381 | 254 |
6 | 168.3 | 313 | 237 | 457 | 305 |
8 | 219.1 | 414 | 313 | 610 | 406 |
10 | 273.1 | 518 | 391 | 762 | 508 |
12 | 323.9 | 619 | 467 | 914 | 610 |
14 | 355.6 | 711 | 533 | 1067 | 711 |
16 | 406.4 | 813 | 610 | 1219 | 813 |
18 | 457.2 | 914 | 686 | 1372 | 914 |
20 | 508 | 1016 | 762 | 1524 | 1016 |
22 | 559 | 1118 | 838 | 1676 | 1118 |
24 | 610 | 1219 | 914 | 1829 | 1219 |
All Dimensions are in mm |
Nominal PN (MPa) |
DN | Thread D |
Pipe Specification DH×s |
L1 | L2 | L3 (Not less than) |
L (Not less than) |
R |
32.0 | 175 | M240×6 | 245×36 | 120 | 130 | 360 | 1095 | 735 |
200 | M265×6 | 273×40 | 130 | 140 | 390 | 1209 | 819 | |
225 | M320×6 | 325×50 | 175 | 185 | 525 | 1500 | 975 | |
250 | M350×6 | 355.6×55 | 195 | 205 | 580 | 1650 | 1070 | |
22.0 | 175 | M215×6 | 219×24 | 100 | 110 | 300 | 957 | 657 |
200 | M240×6 | 245×26 | 110 | 120 | 330 | 1065 | 735 | |
225 | M265×6 | 273×29 | 115 | 125 | 345 | 1164 | 819 | |
250 | M295×6 | 299×32 | 120 | 130 | 360 | 1257 | 897 |
- Rotary Draw Bending: Pipe or tube is bent using a combination of dies and other various components working in a rotary action. This action draws the pipe or tube forward making the desired bend. Rotary draw bending can also utilize mandrels.
- Mandrel Bending: A mandrel is placed inside the tube or pipe that is being bent, especially with thinner wall materials, to prevent defects that can occur in the piece’s bend such as rippling, flattening, or collapse.
- Compression Bending: Bending a pipe or tube using a stationary die while a counter die bends the material around the stationary die.
- Roll Bending: Used when large radius bends or curves are required, this method passes a piece of pipe or tube through a series of three rollers in a pyramid configuration to achieve the desired curve.
|
|
stainless steel pipe bends suppliers, One Stop Shop For 321 stainless steel u bends, 2.5 stainless steel u bends, 45 degree pipe bend, Stockist of Stainless steel steam pipe bends, See Stainless Steel Tubing Bend and stainless steel pipe bend radius chart
|
Biggest supplier of ASME B16.9 bend, Stainless Steel 90 Degree Bends, wholesaler of schedule 10 stainless steel pipe bends, Trader of 4 stainless steel u bend, view 1.5 d bend radius, carbon steel return bends, stainless steel pipe bend dimensions
