Stainless Steel Stub Ends

Manufacturer of Long Stub End, Short Stub End in Mumbai, India, high quality Lap Joint Stub End, Stub End Type A, Stainless Steel Stub End Pipe Fittings suppliers, view Stub End Weight Chart

Stainless steel Lap Joint Stub End are a fittings that are used in the place of welded flanges to support the rotating back of flanges when required. Stainless steel Lap Joint Stub End is the second name of lab joint if I’m not wrong. Stainless steel Lap Joint Stub End are used in the place of welded flanges where the rotating are desired.

Stainless Steel Stub Ends

Stainless Steel Stub Ends

SS Lap Joint Stub End

SS Lap Joint Stub End

SS long stub end asme b16.9

SS long stub end asme b16.9

Stub End Mss Sp 43, Stub End Manufacturers in India, Suppliers of ASME B 16.9 Stub End, lap joint stub end jis, Stub End Din 2642, Stub End Buttweld Fittings, asme b16.9 lap joint stub end, check Type B Stub End Dimensions

Stub End Type A. type A stub ends are for use with standards lap joint flanges. The lap thickness on the stub ends is greater than or equal to the nominal thickness of the pipe wall. The type A also has its outside corner radius to receive lap joint flanges. The inside corner of these flanges are square.
Stainless Steel Stub End Pipe Fittings.

The stainless steel stub ends are essentially a short length of pipe which has one end that is flared outwards and the other end prepared to be welded to pipe of the same nominal pipe size material and of a similar wall thickness.Pipes stub outs are pipes that stick out from a wall or pipe. Stub outs are also called stub-ups. They are capped until a branch pipe is attached. The branch pipe can be inserted after the pipe cap is removed.


what is Stainless Steel Stub End Pipe Fittings ?

Stainless steel stub or long or short ends are those mechanical joints that comprises of two components. The stainless steel stub ends are essentially a short length of pipe which has one end that is flared outwards and the other end prepared to be welded to pipe of the same nominal pipe size material and of a similar wall thickness.



Lap Joint Stub End specification schedule

Specifications
Type A Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Standards
ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings''
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Type B  Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Sch 10 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Jis 10k Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Long  Type DN15-DN1200
Connection Welding
Variations
Welded & Seamless
MSS-A; MSS-B; MSS-C
Short type & Long type
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Type B  Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Jis 10k Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10  are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40  have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



Stub End EN 1092-1 Type 35, Stub End Jis 10k Exporter in India, Latest long stub end asme b16.9 Price List in Mumbai, lap joint stub end type b, ansi lap joint stub end supplier, see asme b16.9 stub end dimensions

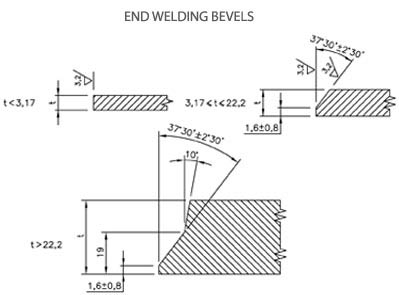

stub end finish

  • Beveled Ends
  • Squared Ends
  • Flanged Ends
  • Grooved Ends
  • Threaded Ends (Male Only)



Short/Long Pattern Stub Ends (Asa/Mss)

Stub ends are available in two different patterns:

  • the short pattern, called MSS-A stub ends
  • the long pattern, called ASA-A stub ends (or ANSI length stub end)



asme b16.9 lap joint stub end price list

Lap joint stub end Price Range Unit
ASTM B16.9 Lap Joint Pure Nickel Stub End Pipe Fittings $1.50-$500.00 USD/Piece
2″ Inch Sch40 Pipe Fittings Lap Joint Stub Ends $4.00-$35.00 USD/Piece
SS Lap Joint Stub End Pipe Fitting $1.00-$100.00 USD/Piece
Lap Joint DN100 DN150 DN200 SCH10S Titanium Stub $4.80-$32.00 USD/Piece
Butt Welding Pipe Fitting Stub End $1.00-$999.00 USD/Piece
Lap Joint Stub End Butt Welding pipe fitting ASME B16.9 $1.00-$10.00 USD/Piece
WP 321 Stainless steel pipe fittings lap joint stub end $1.00-$30.00 USD/Piece
Sch10 Lap Joint Stub End $1.02-$100.00 USD/Piece
titanium lap joint stub end cap fitting $5.00-$30.00 USD/Piece
Butted Welded Lap Joint Stub End $0.30-$50.00 USD/Piece
stub end titanium collar short pattern pipe fitting $5.00-$30.00 USD/Piece
S31803 Stub End BW Pipe Fittings Lap Joint $0.10-$10.00 USD/Piece
Sch 40 SS Lap Joint Stub End Pipe Fittings $1.00-$50.00 USD/Piece
Long Lap Joint Stub Ends for Pipe Fittings $0.10-$19.90 USD/Piece
Brass long lap joint flange seamless stub ends $0.10-$99.00 USD/Piece
Butt Weld Fitting Stainless Steel Short Stub End $1.00-$100.00 USD/Piece
Copper nickel pipe short collar rj stub end $1.00-$100.00 USD/Piece
Seamless stub end fittings $6.10-$7.60 USD/Piece

This is an approximate Cost of Stainless Steel Stub Ends in India. For factory price buy directly from Stainless Steel Lap Joint Stub End Manufacturers In India, check latest SS Long Stub End price list & stock sizes please mail us.

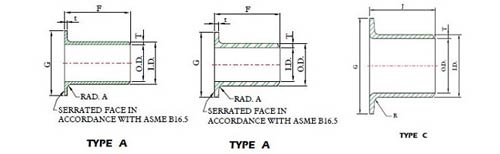

Stub ends types

Stub ends are available in three different types, named “Type A”, “Type B” and “Type C”:

  • The first type (A) is manufactured and machined to match standard lap joint backing flange (the two products have to be used in combination). The mating surfaces have an identical profile to permit a smooth loading of the flare face
  • Stub ends type B are have to be used with standard slip-on flanges
  • Type C stub ends can be used either with lap joint or slip-on flanges and are manufactured from pipes

Stub ends types



  • Stub End
  • Lap Joint Stub End
  • Pipe Stub End
  • Short Stub end
  • Long Stub end
  • Stub End Flange
  • Stub End Fittings
  • Lap Joint Flange Stub End
  • Type A Stub End
  • Stub End

  • Buttweld Long Stub Ends
  • Asme B16.9 Stub End
  • MSS sp 43 stub end
  • MSS type a stub end
  • MSS sp-43 type b stub end
  • MSS type c stub end
  • MSS short stub end
  • MSS-SP-43 Type C Stub End
  • Buttweld Long Stub End
  • Stub End Fittings



Material of Stub End Buttweld Fittings

ASTM Grade UNS Equivalent
A234 WPB Carbon Steel B K03006
A403 Stainless Steel 304/304L S30403
304H S30409
316/316L S31603
316H S31609
317L S31703
904L N08904
309S/H S30908
310S S31008
321 S32100
6XN N08367
20CB N08020
347 S34709
254SMO S31254
A815 Duplex /Super Duplex 2205 S31803/S32205
Zeron 100 S32760
2507 S32750
410 S41000
A366 Nickel Alloys HC22 N06022
HB-3 N10675
HG3 N06985
HX N06002
HC2000 N06200
HC276 N10276
NCI N06600
NC N04400
N N02200
NL N02201
NCMC N06625
NICMC N08825
NIC10 N08810
NIC11 N08811



Carbon Steel
  • ASTM A105
  • ASME SA105 Fittings
  • DIN 1.0402 Type A
  • DIN 1.0460 Type B
  • DIN 1.0619 Long
  • ASTM A105N Jis 10k
  • ASME SA105N Long
  • ASTM A350 LF2 Type A
  • ASME SA350 Type B
  • High Yield CS ASTM A694 Sch 10
Stainless Steel
  • ASTM A182 F304 Fittings
  • ASTM A182 F304L Jis 10k
  • ASTM A182 F316 Type B
  • ASTM A182 F316L Fittings
  • ASTM A182 F317 Jis 10k
  • ASTM A182 F317L Sch 10
  • ASTM A182 F321 Fittings
  • ASTM A182 F321H Type A
  • ASTM A182 F347
  • ASTM A182 F347H Long
Alloy Steel Fittings
  • ASTM A182 F5 Type A
  • ASTM A182 F9 Type B
  • ASTM A182 F11
  • ASTM A182 F22 Jis 10k
  • ASTM A182 F91 Fittings
Inconel Type A
  • Inconel 600 Type B
  • Inconel 601 Fittings
  • Inconel 625 Long
  • Inconel 718 Sch 10
  • Inconel x750
Copper Type B T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Sch 10 Copper Nickel 90/10 (C70600 ) Fittings, Cupro Nickel 70/30 (C71500) , UNS C71640 Type B
Brass Long 3602 / 2604 / H59 / H62 / etc.
Hastelloy Jis 10k Hastelloy C276 (UNS N10276) , C22 (UNS N06022) Fittings, C4 , C2000 Type A, B2 Type B , B3 , X Long
Monel Jis 10k Monel 400 (UNS No. N04400) , Monel 500 (UNS No. N05500) Type A
Alloy 20 Type B Carpenter® 20 Alloy Jis 10k, Alloy 20Cb-3 Sch 10
Aluminium Type A 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Sch 10 Nickel 200 , Nickel 201 Long
Duplex Jis 10k S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Type B Incoloy 800 Long , Incoloy 800H , Incoloy 800HT (UNS N08800) Type A, Incoloy 825 (UNS N08825) Sch 10
254 Smo Fittings SMO 254/6Mo Type B , UNS S31254 , DIN 1.4547 Type A
Nimonic Jis 10k Nimonic 75 , Nimonic 80A , Nimonic 90 Sch 10
Other Long material Tin bronze Type A, Alumunum bronze Jis 10k, Lead bronze Jis 10k
Titanium Sch 10
  • ASTM B381 Titanium Gr. 1 Fittings
  • ASTM B381 Titanium Gr. 2 Jis 10k
  • ASTM B381 Titanium Gr. 4 Type A
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7 Sch 10



Dimensional Tolerances Of Stub Ends Mss Sp-43

Nominal Pipe Size 1/2 up to 2.1/2 3 to 3.1/2 4 5 to 8 10 to 18 20 to 24
Outside Diameter at Welding End (OD) 0.8 0.8 0.8 + 1.6
- 0.8
+ 2.29
- 0.76
+ 3.05
- 0.76
Overall Length (F) 1.6 1.6 1.6 1.6 2 2
Outside Diameter of Lap (G) + 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
Thickness of Lap (T) + 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
+ 1.52
- 0
Fillet Radius of Lap (R) + 0
- 0.76
+ 0
- 0.76
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
+ 0
- 1.6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness



NOMINAL PIPE SIZE NPS ANGULARITY TOLERANCES ANGULARITY TOLERANCES ALL DIMENSIONS ARE GIVEN IN INCHES. TOLERANCES ARE EQUAL PLUS AND MINUS EXCEPT AS NOTED.
Off Angle Q Off Plane P (1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) This tolerance may not apply in localized areas of formed fittings where increased wall thickness is required to meet design requirements of ASME B16.9.
(3) The inside diameter and the nominal wall thicknesses at ends are to be specified by the purchaser.(4) Unless otherwise specified by the purchaser, these tolerances apply to the nominal inside diameter, which equals the difference between the nominal outside diameter and twice the nominal wall thickness.
½ to 4 0.03 0.06
5 to 8 0.06 0.12
10 to 12 0.09 0.19
14 to 16 0.09 0.25
18 to 24 0.12 0.38
26 to 30 0.19 0.38
32 to 42 0.19 0.50
44 to 48 0.18 0.75



Most popular types of astm a403 stub end ?

Stainless Steel Stub End Type A

Stainless Steel Stub End Type A

SS Long Stub End

SS Long Stub End

astm a403 Short Stub End

astm a403 Short Stub End

asme b16.9 lap joint stub end

asme b16.9 lap joint stub end

SS Stub End Buttweld Fittings

SS Stub End Buttweld Fittings

Mss Type B Stub End

Mss Type B Stub End

Stub End Din 2642

Stub End Din 2642

Stub End EN 1092-1 Type 35

Stub End EN 1092-1 Type 35

Stub End EN 1092-1 Type 36

Stub End EN 1092-1 Type 36

Stub End Jis 10k

Stub End Jis 10k

Stainless Steel long neck stub end

Stainless Steel long neck stub end

stub end asme b16.9

stub end asme b16.9



Manufacturing standard of short stub end

  • ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
  • DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
  • EN: EN10253-1, EN10253-2
  • ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
  • ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
  • ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
  • MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



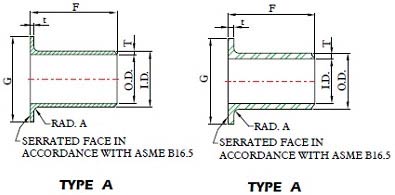

size chart of EN 1092-1 Stub End

size chart of EN 1092-1 Stub End

Nominal Pipe Size (NPS)

Outside Diameter at Bevel

Outside Diameter
of Barrel

Length
F

Radius of Fillet
R

Diameter of Lap
G

Min.

Max.

ANSI

MSS

ANSI & MSS
Type A

MSS
Type B

1/2

21.3

20.55

22.76

76.2

50.8

3.0

0.8

35.0

3/4

26.7

25.88

28.09

76.2

50.8

3.0

0.8

42.9

1

33.4

32.61

34.95

101.6

50.8

3.0

0.8

50.8

1-1/4

42.2

41.38

43.59

101.6

50.8

4.8

0.8

63.5

1-1/2

48.3

47.47

49.94

101.6

50.8

6.4

0.8

73.2

2

60.3

59.54

62.38

152.4

63.5

7.9

0.8

91.9

2-1/2

73.0

72.24

75.34

152.4

63.5

7.9

0.8

104.6

3

88.9

88.11

91.34

152.4

63.5

9.7

0.8

127.0

3-1/2

101.6

100.81

104.04

152.4

76.2

9.7

0.8

139.7

4

114.3

113.51

116.66

152.4

76.2

11.2

0.8

157.2

5

141.3

140.51

144.35

203.2

76.2

11.2

1.5

185.7

6

168.3

167.49

171.27

203.2

88.9

12.7

1.5

215.9

8

219.1

218.29

222.07

203.2

101.6

12.7

1.5

269.7

10

273.1

272.26

277.19

254.0

127.0

12.7

1.5

323.9

12

323.9

323.06

327.99

254.0

152.4

12.7

1.5

381.0

14

355.6

354.81

359.92

304.8

152.4

12.7

1.5

412.8

16

406.4

405.61

410.97

304.8

152.4

12.7

1.5

469.9

18

457.2

456.41

462.03

304.8

152.4

12.7

1.5

533.4

20

508.0

507.21

514.10

304.8

152.4

12.7

1.5

584.2

22

558.8

558.01

564.90

304.8

152.4

12.7

1.5

641.4

24

609.6

608.81

615.70

304.8

152.4

12.7

1.5

692.2



Stub End Din 2642 Weight Chart

Weight Chart Of Stub End Din 2642 Sch 10

NPS
inches
STUB ENDS
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.06 0.08 0.12 0.13
3/4 0.07 0.09 0.15 0.17
1 0.09 0.15 0.20 0.25
1 1/4 0.13 0.20 0.30 0.35
1 1/2 0.16 0.25 0.38 0.46
2 0.25 0.40 0.55 0.75
2 1/2 0.35 0.50 0.80 1.00
3 0.50 0.60 1.10 1.50
4 0.70 1.00 1.80 2.50
5 1.00 1.25 2.50 3.50
6 1.60 1.95 3.70 5.50
8 2.50 3.10 5.90 10.0
10 4.00 4.90 10.5 14.0
12 6.60 7.10 15.0 20.0
14 6.40 7.80 15.5 20.5
16 7.90 9.00 18.0 24.0
18 9.30 10.5 21.0 28.0
20 12.0 13.5 23.5 31.0
24 16.5 19.0 28.5 38.0
Approximate weights in kg, density 8 kg/dm3



ASME B16.9 Stub Ends Length

Stub ends are usually manufactured in two ways, Type A and Type B. They are available in two standard length, long (ANSI) or short pattern (MSS).
Schedule 5s and 10s stub end are usually offered in short lengths, and long lengths are available on special order. Schedule 40s stub end are supplied in either short or long lengths

Nominal Pipe Size Outside diameter
of barrel
Length (F) Radius (R) Diameter (G)
Minimum Maximum Long
Pattern
Short
Pattern
1/2″ 20.5 22.8 76 51 3 35
3/4″ 25.9 28.1 76 51 3 43
1″ 32.6 35.0 102 51 3 51
1 1/4″ 41.4 43.6 102 51 5 64
1 1/2″ 47.5 49.9 102 51 6 74
2″ 59.5 62.4 152 64 8 92
2 1/2″ 72.2 75.3 152 64 8 105
3″ 88.1 91.3 152 64 10 127
3 1/2″ 100.8 104.0 152 76 10 140
4″ 113.5 116.7 152 76 11 157
5″ 140.5 144.3 203 76 11 186
6″ 167.5 171.3 203 89 13 216
8″ 218.3 222.1 203 102 13 270
10″ 272.3 277.2 254 127 13 324
12″ 323.1 328.0 254 152 13 381
14″ 354.8 359.9 305 152 13 413
16″ 405.6 411.0 305 152 13 470
18″ 456.0 462.0 305 152 13 533
20″ 507.0 514.0 305 152 13 584
22″ 558.0 565.0 305 152 13 641
24″ 609.0 616.0 305 152 13 692



ASTM Specification of Stub End

  • Austenitic Stainless Steel
    • ASTM A403 Gr F304
    • ASTM A403 Gr F316
    • ASTM A403 Gr F321
    • ASTM A403 Gr F347
    • ASTM A403 Gr F304L
    • ASTM A403 Gr F316L
    • ASTM A403 Gr F317
    • ASTM A403 Gr F317L
    • ASTM A403 Gr F321
    • ASTM A403 Gr F310
    • ASTM A403 Gr 347
  • Carbon Steel
    • ASTM A234 WPB
    • ASTM A420 WPL6
  • Alloy Steel High-Temp
    • ASTM A234 WP5
    • ASTM A234 WP11
    • ASTM A234 WP9
    • ASTM A234 WP22
    • ASTM A234 WP91
  • Nickel Alloy
    • ASTM B564
    • astm b564 uns n06600
    • astm b564 uns n06625
    • astm b564 uns no4400
    • astm b564 uns n08810
    • astm b564 uns n08811
    • astm b564 uns n08825
    • astm b564 uns n04400
    • astm b564 uns n10276
    • astm b564 uns n10665



Available Stock of

1 in. Schedule 10 Type A 304L Stainless Steel Stub End
1 in. Schedule 10 Type A 304L Stainless Steel Stub End
16 in. Schedule 10 Type A 304L Stainless Steel Stub End
16 in. Schedule 10 Type A 304L Stainless Steel Stub End
1/2 in. Schedule 40 316L Stainless Steel Stub End
1/2 in. Schedule 40 316L Stainless Steel Stub End
1-1/2 in. Schedule 10 316L Stainless Steel Stub End
1-1/2 in. Schedule 10 316L Stainless Steel Stub End
1 in. Schedule 10 304L Stainless Steel Type A Stub End
1 in. Schedule 10 304L Stainless Steel Type A Stub End
1 in. Stub End Schedule 40 304L Stainless Steel Type A MSS
1 in. Stub End Schedule 40 304L Stainless Steel Type A MSS
2 in. 304L Stainless Steel Stub End
2 in. 304L Stainless Steel Stub End
2 in. Schedule 40 Type A 304L Stainless Steel Stub End
2 in. Schedule 40 Type A 304L Stainless Steel Stub End



asme b16.9 stub end fittings dimensions

Dimensions butt welded Stub Ends schedule 10S MSS SP-43 type A/B

asme b16.9 stub end fittings dimensions

NPS
OD
T
G
F
R
Type A
R
Type B
1/2
21.3
2.11
34.9
50.8
3.05
0.76
3/4
26.7
2.11
42.9
50.8
3.05
0.76
1
33.4
2.77
50.8
50.8
3.05
0.76
1.1/4
42.2
2.77
63.5
50.8
4.83
0.76
1.1/2
48.3
2.77
73
50.8
6.35
0.76
2
60.3
2.77
92.1
63.5
7.87
0.76
2.1/2
73
3.05
104.8
63.5
7.87
0.76
3
88.9
3.05
127
63.5
9.65
0.76
3.1/2
101.6
3.05
139.7
76.2
9.65
0.76
4
114.3
3.05
157.2
76.2
11.18
0.76
5
141.3
3.40
185.7
76.2
11.18
1.52
6
168.3
3.40
215.9
88.9
12.7
1.52
8
219.1
3.76
269.9
101.6
12.7
1.52
10
273.1
4.19
323.9
127
12.7
1.52
12
323.9
4.57
381
152.4
12.7
1.52
14
355.6
4.78
412.8
152.4
12.70
1.52
16
406.4
4.78
469.9
152.4
12.7
1.52
18
457.2
4.78
533.4
152.4
12.70
1.52
20
508
5.54
584.2
152.4
12.70
1.52
24
609.6
6.35
692.2
152.4
12.7
1.52

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given.



long stub end dimension

Product Nom. Pipe Size Dia (G) Length (F), Short Outside Dia (O.D.) Sch 160, Inside Dia (I.D.) Sch 160, Lap Thickness (t) Schedule 160, Wall Thickness (T) XX Strong Wall Approx. Weight XX Strong Wall, Inside Dia (I.D.)
1 1/2″ Long Type “A 1.5 2.875 2 1.9 1.338 0.281 0.281 2.98 1.1
1 1/2″ Long Type “A” 1.5 2.875 4 1.9 0.15 0.15 1.49 1.5 0.2
1 1/4″ Long Type “A 1.25 2.5 2 1.66 1.16 0.25 0.25 2.52 0.896
1 1/4″ Long Type “A” 1.25 2.5 4 1.66 0.14 0.14 1.26 1.278 0.191
1″ Long Type “A 1 2 2 1.315 0.815 0.25 0.25 1.76 0.599
1″ Long Type “A” 1 2 4 1.315 0.133 0.133 0.88 0.957 0.179
1/2″ Long Type “A 0.5 1.375 2 0.84 0.464 0.187 0.188 0.68 0.252
1/2″ Long Type “A” 0.5 1.375 3 0.84 0.109 0.109 0.34 0.546 0.147
10″ Long Type “A 10 12.75 5 10.75 8.5 1.125 1.125
10″ Long Type “A” 10 12.75 10 10.75 0.365 0.365 54 9.75 0.5
12″ Long Type “A 12 15 6 12.75 10.126 1.312 1.312
12″ Long Type “A” 12 15 10 12.75 0.375 0.375 64.5 11.75 0.5
14″ Long Type “A” 14 16.25 12 14 0.375 0.375 84 13 0.5
16″ Long Type “A” 16 18.5 12 16 0.375 0.375 98 15 0.5
18″ Long Type “A” 18 21 12 18 0.375 0.375 136 17 0.5
2 1/2″ Long Type “A 2.5 4.125 2.5 2.875 2.125 0.375 0.375 8.8 1.771
2 1/2″ Long Type “A” 2.5 4.125 6 2.875 0.203 0.203 4.4 2.323 0.276
2″ Long Type “A 2 3.625 2.5 2.375 1.689 0.343 0.343 6.1 1.503
2″ Long Type “A” 2 3.625 6 2.375 0.154 0.154 3.05 1.939 0.218
20″ Long Type “A” 20 23 12 20 0.375 0.375 157 19 0.5
3 1/2″ Long Type “A 3.5 5.5 3 4 15.5 2.728
3 1/2″ Long Type “A” 3.5 5.5 6 4 0.226 0.226 7.75 3.364 0.318
3″ Long Type “A 3 5 2.5 3.5 2.624 0.438 0.438 9.8 2.3
3″ Long Type “A” 3 5 6 3.5 0.216 0.216 6.5 2.9 0.3
3/4″ Long Type “A 0.75 1.688 2 1.05 0.612 0.218 0.219 0.94 0.434
3/4″ Long Type “A” 0.75 1.688 3 1.05 0.113 0.113 0.47 0.742 0.154
4″ Long Type “A 4 6.188 3 4.5 3.438 0.531 0.531 19.3 3.152
4″ Long Type “A” 4 6.188 6 4.5 0.237 0.237 9.65 3.826 0.337
5″ Long Type “A 5 7.313 3 5.563 4.313 0.625 0.625 32.66 4.063
5″ Long Type “A” 5 7.313 8 5.563 0.258 0.258 16.33 4.813 0.375
6″ Long Type “A 6 8.5 3.5 6.625 5.187 0.718 0.719 45.26 4.897
6″ Long Type “A” 6 8.5 8 6.625 0.28 0.28 22.63 5.761 0.432
8″ Long Type “A 8 10.625 4 8.625 6.813 0.906 0.906 59.71 6.875
8″ Long Type “A” 8 10.625 8 8.625 0.322 0.322 34.12 7.625 0.5



Buttweld Short Stub End Dimensions


Product Nom. Pipe Size Diameter (G) Length (J) Outside Diameter (O.D.) Schedule 5S Approx. Weight Schedule 5S, Inside Diameter (I.D.) Schedule 5S, Wall Thickness (T)
1 1/2″ Short Type “C” 1.5 2.875 2 1.9 0.29 1.77 0.065
1 1/4″ Short Type “C” 1.25 2.5 2 1.66 0.21 1.53 0.065
1″ Short Type “C” 1 2 2 1.315 0.19 1.185 0.065
1/2″ Short Type “C” 0.5 1.375 2 0.84 0.13 0.71 0.065
10″ Short Type “C” 10 12.75 5 10.75 7.48 10.482 0.134
12″ Short Type “C” 12 15 6 12.75 15 12.438 0.156
14″ Short Type “C” 14 16.25 6 14 19.2 13.688 0.156
16″ Short Type “C” 16 18.5 6 16 23.9 15.67 0.165
18″ Short Type “C” 18 21 6 18 28.5 17.67 0.165
2 1/2″ Short Type “C” 2.5 4.125 2.5 2.875 0.75 2.709 0.083
2″ Short Type “C” 2 3.625 2.5 2.375 0.44 2.245 0.065
20″ Short Type “C” 20 23 6 20 36.3 19.624 0.188
24″ Short Type “C” 24 27.25 6 24 56 23.564 0.218
3″ Short Type “C” 3 5 2.5 3.5 0.94 3.334 0.083
3/4″ Short Type “C” 0.75 1.688 2 1.05 0.14 0.92 0.065
4″ Short Type “C” 4 6.188 3 4.5 1.38 4.334 0.083
5″ Short Type “C” 5 7.313 3 5.563 2.06 5.345 0.109
6″ Short Type “C” 6 8.5 3.5 6.625 2.75 6.407 0.109
8″ Short Type “C” 8 10.625 4 8.625 3.88 8.407 0.109



Lap Joint Stub Ends Dimensions

Common

Long Pattern

Short
Pattern

Diameter of
Lap

Radius of Fillet

OD of Barrel

Weight

Nominal Pipe Size

OD at Bevel



Dimension

A

Dimension

A

Dimension

B

Dimension
R

OD



40S/STD1



max

min

in

mm

in

mm

in

mm

in

mm

in

mm

in

mm

in

mm

kg/piece

1/2

0.84

21

3.00

76

2.00

51

1.38

35

0.12

3

0.90

23

0.81

21

0.14

3/4

1.05

27

3.00

76

2.00

51

1.69

43

0.12

3

1.11

28

1.02

26

0.18

1

1.32

33

4.00

102

2.00

51

2.00

51

0.12

3

1.38

35

1.28

33

0.30

11/4

1.66

42

4.00

102

2.00

51

2.50

64

0.19

5

1.72

44

1.63

41

0.41

11/2

1.90

48

4.00

102

2.00

51

2.88

73

0.25

6

1.97

50

1.87

47

0.55

2

2.38

60

6.00

152

2.50

64

3.62

92

0.31

8

2.46

62

2.34

60

1.00

21/2

2.88

73

6.00

152

2.50

64

4.12

105

0.31

8

2.97

75

2.84

72

1.56

3

3.50

89

6.00

152

2.50

64

5.00

127

0.38

10

3.60

91

3.47

88

2.15

31/2

4.00

102

6.00

152

3.00

76

5.50

140

0.38

10

4.10

104

3.97

101

-

4

4.50

114

6.00

152

3.00

76

6.19

157

0.44

11

4.59

117

4.47

114

3.05

5

5.56

141

8.00

203

3.00

76

7.31

186

0.44

11

5.68

144

5.53

141

5.30

6

6.62

168

8.00

203

3.50

89

8.50

216

0.50

13

6.74

171

6.59

168

6.90

8

8.62

219

8.00

203

4.00

102

10.62

270

0.50

13

8.74

222

8.59

218

10.45

10

10.75

273

10.00

254

5.00

127

12.75

324

0.50

13

10.91

277

10.72

272

18.15

12

12.75

324

10.00

254

6.00

152

15.00

381

0.50

13

12.91

328

12.72

323

22.25

14

14.00

356

12.00

305

6.00

152

16.25

413

0.50

13

14.17

360

13.97

355

29.05

16

16.00

406

12.00

305

6.00

152

18.50

470

0.50

13

16.18

411

15.97

406

32.69

18

18.00

457

12.00

305

6.00

152

21.00

533

0.50

13

18.19

462

17.97

456

38.60

20

20.00

508

12.00

305

6.00

152

23.00

584

0.50

13

20.24

514

19.97

507

42.68

22

22.00

559

12.00

305

6.00

152

25.25

641

0.50

13

22.24

565

21.97

558

-

24

24.00

610

12.00

305

6.00

152

27.25

692

0.50

13

24.24

616

23.97

609

51.30



End welding bevels of Stub Ends

End welding bevels of Stub Ends

Ends/Face lap finishing

The following types of ends may be ordered:

  • Beveled Ends (generally ASME B16.25)
  • Squared Ends
  • Flanged Ends
  • Victaulic Grooves
  • Threaded Ends (Male Only)
NOMINAL PIPE SIZE (Inches) NB OD THICKNESS SCH 10 SCH 20 SCH 30 SCH 40 SCH 80
1/2 15NB 21.30 1.65 2.11 __ 2.41 2.77 3.73
3/4 20NB 26.70 1.65 2.11 __ 2.41 2.87 3.91
1 25NB 33.40 1.65 2.77 __ 2.90 3.38 4.55
1 1/4 32NB 42.20 1.65 2.77 __ 2.97 3.56 4.85
1 1/2 40NB 48.30 1.65 2.77 __ 3.18 3.68 5.08
2 50NB 60.30 1.65 2.77 __ 3.18 3.91 5.54
2 1/2 65NB 73.00 2.11 3.05 __ 4.78 5.16 7.01
3 80NB 88.90 2.11 3.05 __ 4.78 5.49 7.62
3 1/2 90NB 101.60 2.11 3.05 __ 4.78 5.74 8.08
4 100NB 114.30 2.11 3.05 __ 4.78 6.02 8.56
5 125NB 141.30 2.77 3.40 __ __ 6.55 9.53
6 150NB 168.30 2.77 3.40 __ __ 7.11 10.97
8 200NB 219.10 2.77 3.76 6.35 7.04 8.18 12.70
10 250NB 273.00 3.40 4.19 6.35 7.80 9.27 15.09
12 300NB 323.80 3.96 4.57 6.35 8.38 10.31 17.48
14 350NB 355.60 3.96 6.35 7.92 9.53 11.13 19.05
16 400NB 406.40 4.19 6.35 7.92 9.53 12.7 21.44
18 450NB 457.00 4.19 6.35 7.92 11.13 14.27 23.83
20 500NB 508.00 4.78 6.35 9.53 12.70 15.09 26.19
22 550NB 559.00 4.78 6.35 9.53 12.70 __ 28.58
24 600NB 610.00 5.54 6.35 9.53 14.27 17.48 30.96

Buy directly from long stub end stainless steel, short stub end stainless steel manufacturers in Mumbai, stockholder of short stub end ansi 150, stub end a105, Wholesaler of Stub End 304, Stub End EN 1092-1 Type 36, check Stub End Type A, lap joint stub end weights



How to order a Stub Ends

The following information shall be provided to order a stub end:

  • NPS
  • Schedule
  • Length (according to norms MSS SP43 / ASME B16.9 / custom)
  • Specs and material grade
  • Ends finish
  • Execution: seamless / welded (wx)



Application of Stainless Steel Stub Ends

  • Applications where rotating back flanges are preferred (to facilitate bolting)
  • Pipelines in costly materials, as stainless steel, duplex, super-austenitic (example 6Mo), nickel alloy, titanium and zirconium: indeed, the use of stub ends for this type of pipelines helps End-Users and EPC Contractors reduce the total weight of the flanged joints and their total cost (example: in a stainless steel pipeline, carbon steel backing flanges can be used instead of standard stainless steel flanges – as they do not get in contact with the fluid conveyed by the pipeline – “unwetted materials”)
  • High pressure pipelines



ANSI B 16.9 Stub End manufacturers, stockist of EN 1092-1 Stub End, stub end asme b16.9, traders of astm a403 stub end, long neck stub end, buy short stub end stainless & carbon steel a dealer price, See Stub End Specification



© 2020 RELIABLE PIPES & TUBES LTD. All rights reserved.
