stainless steel Forged fittings

stainless steel 304 forged fittings, Forged Steel Fittings Manufacturers in india, buy forged fittings asme b16.11, Stainless Steel Threaded Fittings, high quality ss forged elbow suppliers, view stainless steel screwed fittings dimensions

Forged steel fittings manufactures in India is at large sale they have many best companies which are working nationally and internationally which provides high quality of products. Our Reliable Pipes Tubes Ltd. is specialized manufacturer and supplier in India we offer best products in affordable rates.

Stainless Steel Forged Fittings

Stainless Steel Forged Fittings

ASME B16.11 Forged Fittings

ASME B16.11 Forged Fittings

Stainless Steel Npt Threaded Fittings

Stainless Steel Npt Threaded Fittings

Special Price stainless steel forged fittings manufacturer In Mumbai, Get ASTM A182 Stainless Steel 304 Forged Elbow, ss forged 90 degree elbow, ss forged tees, ss forged unequal tee, forged steel threaded pipe fittings stock, Check ss forged pipe fittings dimensions, See ss forged full coupling Prices

Stainless steel 304 forged fittings are known as chromium nickel austenitic alloy these are most versatile and used variously. The products are available in winder range which has high ductility, excellent forming and spinning properties. In steel 304l forged fittings, the maximum carbon content is set at 0.08%.

Forged fittings ASME b16.11 standards includes the pipes and fittings material cast iron, cast bronze, wrought copper and steel, it is used in connecting with tool in other volumes of ASME b16 series. This contains pressure temperature ratings.Stainless steel threaded fittings are commonly used in low-cost, noncritical applications such as domestic water cooling systems. These fittings are commonly made up of malleable iron, bronze and carbon steel these are available in various pressure ratings and used widely.

SS forged elbow are used in industries food processing pipelines, water supply pipe lines and in a number of other fluid transfer piping systems stainless steel forged elbows that make 45 or 90 degrees changes of directions in the run of the pipe flow.


What is Stainless steel forged fittings?

Stainless steel forged fittings grades is fully austenitic in nature provides good attributes for industrial fittings applications. The forged fittings are diversified for the chemical applications purposes. These forged fittings are manufactured from industrial forging machines using the new technologies. These are covered by satin or bright blacks coat the project them from rusting.


standard specification of forged steel threaded pipe fittings

Specifications ASTM A182 & ASME SA182
Threaded Fittings Cast Iron NPT , BSPT, BSPP
Standards ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
size of ASME B16.11 Stainless Steel Threaded Fittings 1/8” NB to 4” NB (Screwed-Threaded)
Stainless Steel Forged Fittings Distributor of Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert
End Threaded, Welding, JIC
Connection Welding
Pressure Rating Threaded Fittings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Test Certificates of ASME B16.11 Stainless Steel Threaded Fittings 100% Radiography Test Report
EN 10204/3.1B
Raw Materials Certificate
Third Party Inspection Report, etc
Origin West Europe / Japan / Indian / USA / Korean
Manufacturers of ASME B16.11 Stainless Steel Threaded Fittings
  • Threaded Galvanised Fittings Metal far, Italy
  • Nps Threaded Fittings make Erne Fittings, Austria
  • Threaded Bsp Fittings make Melesi, Italy
  • Npt Threaded Pipe Fittings BKL- Thai Benkan, Thailand
  • ASME B16.11 Stainless Steel Threaded Fittings make TecnoForge, Italy
  • Npt Threaded Fittings make Ulma, Spain
  • Forged Threaded Fittings make BENKAN Corporation, Japan
  • Forged Threaded Pipe Fittings make Mega, Italy
Marking

Stainless Steel: Marked by electro-etched, jet printed or stamping
1/2" to 4": Marked with brand, material, heat code, B16 (For ASME B16.11 products), pressure and size3/8" under: Brand only

Finishing
Stainless Steel: Pickled
Tips to order Stainless Steel Forged Fittings
Size + Pressure Class + Type + Grade
2" + 3000 LBS + SW + ASTM A182
Threaded Adaptors Fittings Industrial Applications
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India

forged stainless steel pipe fittings manufacturer, Prime quality stainless steel forged 45 degree elbow, SS 316 forged Pipe Fittings stockists, stainless steel forged hex plug, SS forged union exporter, View Forged Fittings Manufacturers in Mumbai



High Pressure Stainless Steel Threaded Pipe Fittings

ASTM A182 Fittings Pressure Class 2000LBS, 3000LBS, 6000LBS
Products
ASTM A182 Round Head Plug, ASTM A182 Bull Plug, ASTM A182 Boss, ASTM A182 Outlet, ASTM A182 Hex Nipple, ASTM A182 Swage Nipple, SS Elbow 90 Degree, SS Elbow 45 Degree, ASTM A182 Reducing Coupling, ASTM A182 Cap, ASTM A182 Hex Head Bushing, ASTM A182 Hex Head Plug, ASTM A182 Square Head Plug, SS Tee, ASTM A182 Cross, ASTM A182 Union, ASTM A182 Street Elbow, ASTM A182 Coupling, ASTM A182 Half Coupling
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8"~4" (DN6~DN100)
Why use SS Threaded Fittings?
  • While using SS Threaded Fitting, leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.
  • Installation productivity is moderately high, and specialized installation skill requirements are not extensive.



Manufacturing Standards of ASME B16.11 Threaded Fittings

ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.11 Forged Fittings, Socket – Welding and Threaded
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 Swage(d) Nipples and Bull Plugs
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry




ASME B16.11 Threaded Fittings Price in India

Stainless steel threaded fittings Price Per Piece in India NPT threaded fittings Price in INR Cast Iron Threaded Fittings Price in Saudi Riyal Forged Threaded Fittings Price in UAE Dirham
RED.STRAIGHT TEE: 1 X 1/2 NPS, ASTM A 105, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV.TO A153,ASME B16.11 Rs. 581.85 Saudi Riyal 30.38 UAE Dirham 29.75
EQ.STRAIGHT TEE: 1-1/2 NPS, ASTM A 105 , NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV.TO A153, ASME B16.11 Rs. 689.60 Saudi Riyal 36.01 UAE Dirham 35.26
90° ELBOW: 1/2 NPS, ASTM A 105, NPT (F) THRD (ASME B1.20.1), CL3000#, GALV.TO A153, ASME B16.11 Rs. 466.92 Saudi Riyal 24.38 UAE Dirham 23.87


This is an approximate Cost of forged stainless steel pipe fittings in India. For factory price buy directly from stainless steel forged fittings manufacturer In India, check latest ASME B16.11 Forged Fittings & stock sizes please mail us.



Types of Stainless Steel Forged Fittings

  • Union BS 3799
  • Forged Threaded Hex Nipple
  • Forged Threaded Union
  • Forged Threaded Hex Head Bushing
  • Forged Threaded Bull Plug
  • Forged Threaded Plug
  • Forged Threaded Welding Boss
  • Union Male Female
  • Forged Threaded Swage Nipple
  • Forged Threaded Hex Head Plug
  • Forged Threaded Bushing
  • Forged Threaded Square Head Plug
  • Forged Threaded Round Head Plug
  • Forged Threaded Boss
  • Forged Threaded Pipe Nipple
  • Forged Threaded Reducing Coupling
  • Forged Threaded Unequal Tee
  • Forged Threaded Pipe Cap / End Cap
  • Forged Threaded Unequal Cross
  • Forged Threaded Cross
  • Forged Threaded 45° Elbow
  • Forged Threaded Street Elbow
  • Forged Threaded Tee
  • Forged Threaded Equal Tee
  • Forged Threaded Cap
  • Forged Threaded Half Coupling
  • Forged Threaded Equal Cross
  • Forged Threaded Full Coupling
  • Forged Threaded 90° Elbow



Types Of SS Threaded Fittings By Class And Size


>
Description
Class Designation
2000
3000
6000
Elbows 45 and 90 degrees
Tees, Crosses, Coupling
Half-Coupling, Cap
1/2 – 4
1/2 – 2
1/2 – 2
1/2 – 4
1/2 – 2
1/2 – 2
1/2 – 4
1/2 – 2
1/2 – 2
Pipe Wall
SCH 80 / XS
SCH 160
XXS

Plugs and Bushings are not identified. They may be used up through Class 6000



Stainless steel threaded fittings pressure rating

Pressure-Temperature ratings for malleable iron threaded fittings (psig)  kPa
Temperature
Class
150
300
1/4 - 1 inches
1 1/4 - 2 inches
2 1/2 - 3 inches
(oF)
(oC)
-20 to 150
-29 to 66
300
2000
1500
1000
200
93
265
1785
1350
910
250
121
225
1575
1200
825
300
149
185
1360
1050
735
350
177
150
1150
900
650
400
204
-
935
750
560
450
232
-
725
600
475
500
260
-
510
450
385
550
288
-
300
300
300



difference between socket weld and threaded

Forged Pipe Fittings Type

Socket Weld

Threaded

Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS 2000LBS,3000LBS, 6000LBS, 9000LBS

Fittings Form

Reducer Insert, Boss, Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Weld, Nipple Branch Outlet Butt Weld, 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Branch Outlet Butt Weld, 90° Elbow Outlet Butt Weld, Lateral Outlet Butt Hex Nipple, Street Elbow, Bull Plug, Boss, Swage Nipple, Tee, Cross, Full Coupling, Half Coupling, Reducing Coupling, Pipe Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Union, Pipe Nipple, Adapter, Union (Male x Female), Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Nipple Branch Outlet, 90° Elbow, 45° Elbow
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size

1/8″~4″ (DN6~DN100) 1/8″~4″ (DN6~DN100)

Thread

—–

ISO, DIN, NPT, BSPT





ASME B16.11 Forged Screwed-Threaded grades & materials chart

ASME B16.11 Stainless Steel Threaded Fittings ASTM A182F321H, F321, F347, F11, F304L, F316TI, F310S, F316LN, F904L, F304, F310H, F91, F316H, F309S, F316L, F317L, F309H, F22, F347H, F317, F304H, F306, ASTM A312/A403 TP304,TP316, TP304L, TP316L

  • NPT Threads conform to ASME B1.20.1
  • The dimensions for Stainless Steel Npt Threaded Fittings conform to ASME B16.11
  • The material for Stainless Steel Threaded Fittings conforms to ASME A182
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India



forged fittings asme b16.11 dimension

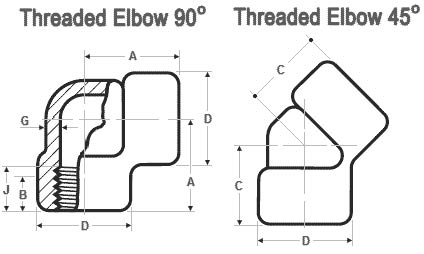

forged fitting dimensions – 2000 LBS

forged fitting dimensions – 2000 LBS

NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 33 3.18 28 22
3/4 12.7 13.9 38 3.18 33 25
1 14.7 17.3 46 3.68 38 28
17 18 56 3.89 44 33
17.8 18.4 62 4.01 51 35
2 19 19.2 75 4.27 60 43
23.6 28.9 92 5.61 76 52
3 25.9 30.5 109 5.99 86 64
4 27.7 33 146 6.55 106 79

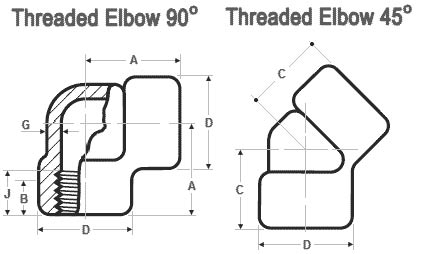

forged fitting dimensions – 3000 LBS

forged fitting dimensions – 3000 LBS

NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 38 4.09 33 25
3/4 12.7 13.9 46 4.32 38 28
1 14.7 17.3 56 4.98 44 33
17 18 62 5.28 51 35
17.8 18.4 75 5.56 60 43
2 19 19.2 84 7.14 64 44
23.6 28.9 102 7.65 83 52
3 25.9 30.5 121 8.84 95 64
4 27.7 33 152 11.18 114 79



forged fitting dimensions – 6000 LBS



NPS Minimum Length
of Thread
Outside Diameter
of Band
Minimum
Wall Thickness
Center to End
B J D G 90°
A
45°
C
1/2 10.9 13.6 46 8.15 38 28
3/4 12.7 13.9 56 8.53 44 33
1 14.7 17.3 62 9.93 51 35
17 18 75 10.59 60 43
17.8 18.4 84 11.07 64 44
2 19 19.2 102 12.09 83 52
23.6 28.9 121 15.29 95 64
3 25.9 30.5 146 16.64 106 79
4 27.7 33 152 18.67 114 79



Various types of forged threaded pipe fittings

Astm a182 Stainless Steel Threaded Street Elbow

Astm a182 Stainless Steel Threaded Street Elbow

ASME B16.11 Stainless Steel forged Tee

ASME B16.11 Stainless Steel forged Tee

SS forged 45 deg Elbow

SS forged 45 deg Elbow

Stainless Steel forged 90 deg Elbow

Stainless Steel forged 90 deg Elbow

ansi b16.11 Stainless Steel forged Full Coupling

ansi b16.11 Stainless Steel forged Full Coupling

Astm a182 Stainless Steel Threaded Cross

Astm a182 Stainless Steel Threaded Cross

Super Austenitic Stainless Steel Screwed Pipe Cap

Super Austenitic Stainless Steel Screwed Pipe Cap

Stainless Steel forged Half Coupling

Stainless Steel forged Half Coupling

Astm a182 Stainless Steel forged Hex Head Plug

Astm a182 Stainless Steel forged Hex Head Plug

Ferritic Stainless Steel forged Hex Head Bushing

Ferritic Stainless Steel forged Hex Head Bushing

Ansi b16.11 Stainless Steel forged Union

Ansi b16.11 Stainless Steel forged Union

Astm a182 Stainless Steel Screwed Boss

Astm a182 Stainless Steel Screwed Boss

Super Austenitic Stainless Steel Threaded Round Head Plug

Super Austenitic Stainless Steel Threaded Round Head Plug

Chromium Stainless Steel Screwed Square Head Plug

Chromium Stainless Steel Screwed Square Head Plug

Super Ferritic Stainless Steel forged Hex Nipple

Super Ferritic Stainless Steel forged Hex Nipple

ASME B16.11 Stainless Steel Screwed 45° Lateral Tee

ASME B16.11 Stainless Steel Screwed 45° Lateral Tee



forged stainless steel pipe fittings Weight Chart

SIZE
A
B
QTY
WEIGHT
¼
0.81
0.88
160
0.20
0.97
1.00
130
0.26
½
1.12
1.31
100
0.57
¾
1.31
1.5
75
0.71
1
1.5
1.81
40
1.08
1 ¼
1.75
2.19
25
1.68
1 ½
2.00
2.44
18
2.38
2
2.38
2.97
10
3.55
2 ½
3.00
3.62
4
6.22
3
3.38
4.31
2
10.36
4
4.19
5.75
1
23.91
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India



ASME B16.11 Stainless Steel Threaded Fittings Size Chart

Products Size
ASTM A182 SS Bushings ASTM A182 SS Pipe Nipple
  • Pressure Ratings -2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
  • Sizes 1/8″– 4″
ASTM A182 SS Forged Caps ASTM A182 SS Couplings
ASTM A182 SS 90° Elbows ASTM A182 SS 45° Elbows
ASTM A182 SS Forged Tees ASTM A182 SS Unions
ASTM A182 SS Forged Plug ASTM A182 SS Street Elbows
ASTM A182 SS Forged Cross ASTM A182 SS Inserts



NPS
Minimum Length
of Thread
Outside Diameter
of Band
D
Center to End
A
Minimum
Wall Thickness
B
J
1/2
10.9
13.6
33
28
3.18
3/4
12.7
13.9
38
33
3.18
1
14.7
17.3
46
38
3.68
1 ¼
17
18
56
44
3.89
1 ½
17.8
18.4
62
51
4.01
2
19
19.2
75
60
4.27
2 ½
23.6
28.9
92
76
5.61
3
25.9
30.5
109
86
5.99
4
27.7
33
146
106
6.55
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India


Special Price Offer On

Forged 1/2” NPT stainless steel swagelok type SS hexagonal nipple fittings male thread
Forged 1/2” NPT stainless steel swagelok type SS hexagonal nipple fittings male thread
1/2 inch NPT Stainless Steel Close Gas Forged Nipple Fittings With Male Thread
1/2" NPT Stainless Steel Close Gas Forged Nipple Fittings With Male Thread
SS 1/4 inch Male Forged Thread Reducing Pipe Fitting Coupling
SS 1/4" Male Forged Thread Reducing Pipe Fitting Coupling
SS forged double ferrule tube fittings 6mm 90 degree elbow
SS forged double ferrule tube fittings 6mm 90 degree elbow
CL9000 Forged SS Pipe Fittings
CL9000 Forged SS Pipe Fittings
SS 3000LB thread forged high pressure pipe fittings
SS 3000LB thread forged high pressure pipe fittings
Forged high pressure pipe fittings SS equal NPT threaded 3000LBs tee
Forged high pressure pipe fittings SS equal NPT threaded 3000LBs tee
Forged pipe fittings 4 inch 45 degree stainless steel pipe elbows
Forged pipe fittings 4 inch 45 degree stainless steel pipe elbows



forged steel threaded fittings for buy

  • ASTM A182 SS Forged Plug
  • Stainless Steel Reducing Tee
  • Stainless Steel SS Socket Weld 90 Deg Elbow
  • ASTM A182 SS Screwed Hex Plug
  • Stainless Steel Socket Weld Cap
  • SS Socket Weld Cross Stockholder
  • SS Socket Weld 45 Degree Elbow Suppliers
  • ANSI B16.11 SS Socket Weld Union
  • A182 SS Hex Nipples
  • Stainless Steel Forged Pipe Fittings
  • ASTM A182 SS 90° Elbows
  • Stainless Steel Socket weld Unequal Tee
  • Stainless Steel SUS Socket Weld Half Coupling
  • SS Forged Tee Dealer
  • Stainless Steel AISI Full Coupling
  • ASTM A182 SS Forged Cross
  • Steel Threaded Street Elbow
  • ASTM A182 SS Forged Tees
  • ASTM A182 SS Forged Caps
  • ASTM A182 SS Bushings
  • Stainless Steel Socket Weld Fittings
  • 316L Stainless Steel Threaded Unions
  • 316H Stainless Steel Socket Weld Couplings
  • Stainless Steel 304 Threaded Elbow
  • ASTM A182 310S Stainless Steel Socket Weld Elbow
  • Stainless Steel 90 deg Forged Elbow
  • ASTM A182 316 Stainless Steel Unequal Tee
  • A182 SS 310 45 deg. Elbow
  • Stainless Steel Threaded Bushing
  • A182 SS Forged Pipe Fittings Suppliers
  • ASTM A182 Stainless Steel 304L Equal Tee
  • ASTM A182 317 Stainless Steel Pipe Nipples
  • A182 SS 904L Screwed Fittings
  • ASTM A182 SS Couplings
  • SS Threaded / Screwed Union Stockist
  • Stainless Steel Threaded Fittings
  • ASTM A182 SS 45° Elbows
  • ASTM A182 SS Inserts
  • Stainless Screwed Cap
  • SS Threaded / Screwed Bushing
  • Stainless Steel High Pressure Forged Fittings
  • SS Threaded Tee Exporter
  • SS Threaded Half Coupling Manufacturer
  • ASME SA182 SS Square Plug
  • Stainless Steel Coupling supplier
  • Steel Threaded / Screwed Cross Distributors
  • ASME SA182M SS Swage Nipple
  • ASTM A182 SS Street Elbows
  • ASTM A182 SS Unions
  • SS ASME B16.11 Threaded Unequal Tee
  • SS Threaded / Screwed Pipe Nipple
  • ASTM A182 SS Pipe Nipple
  • Stainless Steel Threaded 90 Deg Elbow
  • ANSI Stainless Steel Screwed 45 Degree Elbow
  • 347 Stainless Steel Socket weld Forged fittings
  • AISI Stainless Steel ASTM A182 410 Boss
  • SS Threaded Forged Pipe fittings
  • ASTM A182 316TI Stainless Steel Reducing Insert
  • Stainless Steel 321H Unions
  • ASTM A182 SS Forged Pipe Fittings
  • Stainless Steel Threaded Hex Nipples
  • ASME Stainless Steel SA182 Reducing Couplings
  • Stainless Steel 347H Barrel Nipple
  • ASTM A182 Stainless Steel 446 Pipe Cap
  • 321 SS Street Elbow
  • 446 Stainless Steel Forged Fittings



stainless steel screwed fittings Applications & Features

Applications:
  • Power Generation — tube hangers, pulverized coal burners
  • Food, Beverage, and Dairy
  • Forged Fittings for Chemical
  • Oil and Gas
  • Petrochemicals and Refineries
  • Thermal, Nuclear and Solar Power Plants
  • Marine & Dredging
  • Petroleum Refining — recuperators, catalytic recovery systems

Features:

  • Durable functioning
  • High strength
  • Excellent conductivity
  • Heat resistance
  • Precisely designed
  • Corrosion resistant
  • Impeccable finish
  • Malleable
  • Enhanced service life





A182 ss forged pipe fittings Chemical Formula

Type Grade ASTM A240 Chemical Composition
ASTM(A240M) Others(JIS) C Si Mn P S Ni Cr Mo Others
Austenitic Steels 304 SUS304 ≤0.07 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 17.5/19.5 N≤0.10
304H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0
304L SUS304L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 17.5/19.5 N≤0.10
304N SUS304N1 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0 N:0.10/0.16
304LN SUS304LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 18.0/20.0 N:0.10/0.16
309S SUS309S ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 12.0/15.0 22.0/24.0
310S SUS310S ≤0.08 ≤1.50 ≤2.00 ≤0.045 ≤0.030 19.0/22.0 24.0/26.0
316 SUS316 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316L SUS316L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00
316LN SUS316LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N:0.10/0.16
317L SUS317L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N≤0.10
317LN SUS317LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N:0.10/0.22
321 SUS321 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/12.0 17.0/19.0 N≤0.10Ti:5ʷʢC+Nʣ/0.70
347 SUS347 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/13.0 17.0/19.0 Nb:10ʷC/1.00
904L SUS890L ≤0.020 ≤1.00 ≤2.00 ≤0.045 ≤0.035 23.0/28.0 19.0/23.0 4.00/5.00 N≤0.10Cu:1.0/2.0
S31254 ≤0.020 ≤0.80 ≤1.00 ≤0.030 ≤0.010 17.5/18.5 19.5/20.5 6.0/6.5 N:0.18/0.25Cu:0.50/1.00
SUS317J2 ≤0.06 ≤1.50 ≤2.00 ≤0.045 ≤0.030 12.00/16.00 23.00/26.00 0.50/1.20 N:0.25/0.40



Mechanical Analysis of forged branch outlet fittings

Type Mechanical Properties for Stainless Steel Plates
ASTM(A240M) Others(JIS) Tensile Properties Hardness
Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%) HBW HRBW
AusteniticSteels 304 SUS304 ≥205 ≥515 ≥40 ≤201 ≤92
304H ≥205 ≥515 ≥40 ≤201 ≤92
304L SUS304L ≥170 ≥485 ≥40 ≤201 ≤92
304N SUS304N1 ≥240 ≥550 ≥30 ≤217 ≤95
304LN SUS304LN ≥205 ≥515 ≥40 ≤217 ≤95
309S SUS309S ≥205 ≥515 ≥40 ≤217 ≤95
310S SUS310S ≥205 ≥515 ≥40 ≤217 ≤95
316 SUS316 ≥205 ≥515 ≥40 ≤217 ≤95
316L SUS316L ≥170 ≥485 ≥40 ≤217 ≤95
316H ≥205 ≥515 ≥40 ≤217 ≤95
316LN SUS316LN ≥205 ≥515 ≥40 ≤217 ≤95
317L SUS317L ≥205 ≥515 ≥40 ≤217 ≤95
317LN SUS317LN ≥240 ≥550 ≥40 ≤217 ≤95
321 SUS321 ≥205 ≥515 ≥40 ≤217 ≤95
347 SUS347 ≥205 ≥515 ≥40 ≤201 ≤92
N08904/904L SUS890L ≥220 ≥490 ≥35 ≤196 ≤90
S31254 ≥310 ≥655 ≥35 ≤223 ≤96
SUS317J2 ≥345 ≥690 ≥40 ≤250 ≤100



Material Equivalent for ASTM A182 Stainless Steel Forged Threaded Fittings

S G4304 ASTM UNS KS EN10095 AS CNS
SUS201 201 S20100 STS201 1.4372 201-2 201
SUS202 202 S20200 STS202 1.4373 202
SUS301 301 S30100 STS301 1.4319 301 301
SUS304 304 S30400 STS304 1.4301 304 304
SUS304L 304L S30403 STS304L 1.4306 304L 304L
SUS304N1 304N S30451 STS304N1 1.4315 304N1 304N1
SUS304N2 XM21 S30452 STS304N2 304N2 304N2
SUS304LN 304LN S30453 STS304LN 304LN 304LN
SUS305 305 S30500 STS305 1.4303 305 305
SUS309S 309S S30908 STS309S 1.4833 309S 309S
SUS310S 310S S31008 STS310S 1.4845 310S 310S
SUS316 316 S31600 STS316 1.4401 316 316
SUS316Ti 316Ti S31635 1.4571 316Ti 316Ti
SUS316L 316L S31603 STS316L 1.4404 316L 316L
SUS316N 316N S31651 STS316N 316N 316N
SUS316LN 316LN S31653 STS316LN 1.4429 316LN 316LN
SUS316J1 STS316J1 316J1 316J1
SUS316J1L STS316J1L 316J1L
SUS317 317 S31700 STS317 317 317
SUS317L 317L S31703 STS317L 1.4438 317L 317L
SUS321 321 S32100 STS321 1.4541 321 321
SUS347 347 S34700 STS347 1.455 347 347
SUS329J1 329 S32900 STS329J1 1.4477 329J1 329J1
SUS329J3L S31803 STS329J3L 1.4462 329J3L 329J3L
SUS405 405 S40500 STS405 1.4002 405 405
SUH409 409 S40900 STS409 1.4512 409L 409L
SUS410L STS410L 410L 410L
SUS430 430 S43000 STS430 1.4016 430 430
SUS434 434 S43400 STS434 1.4113 434 434
S43940 1.4509 439 439
SUS444 444 S44400 STS444 1.4521 444 444
SUS403 403 S40300 STS403 403 403
SUS410 410 S41000 STS410 1.4006 410 410
SUS420J1 420 S42000 STS420J1 1.4021 420 420J1
SUS420J2 STS420J2 1.4028 420J2 420J2
SUS440A 440A S44002 STS440A 440A 440A

Factory Cheap Price stainless steel forged bushings, stainless steel forged hex nipples suppliers, wholesaler of stainlesss steel forged Unequal Cross, Forged Steel Fittings and Unions in Mumbai, ss forged cross traders, see Forged Fittings Weight Chart



SS Forged Pipe Fittings Application Industries

  • Power Plant
  • Structural Pipe
  • Heating
  • Paper & Pulp Industry
  • Oil and Gas Pipeline
  • General Purpose Applications
  • Plumbing
  • Chemical Industry
  • Water Supply Systems
  • Fabrication Industry
  • Food Processing Industry



Forged Pipe Fittings Manufacturers, Stockholder of Forged Steel Fitting, Importer of ASME/ANSI B16.11 forged Bushing, 317L SS forged Fittings, Stockists of SS 310S Union,stainlesss steel forged half coupling, 321 Steel Full Coupling.



© 2020 RELIABLE PIPES & TUBES LTD. All rights reserved.
Website Designed & SEO by Mesotek
