Stainless Steel Socket Weld Fittings
We deliver stainless steel socket weld couplings, 150# ss socket weld fittings, 316 ss socket weld fittings with Exceptional sizes, standard, and Quality
Stainless Steel Socket Weld Fittings
150# SS Socket Weld Fittings
316 SS Socket Weld Fittings
Table of contents
- What is Stainless steel Socket Weld Fittings?
- standard specification of SS Socket weld Fittings
- ASME B16.11 Socket weld Fittings Price List
- Forged Socket Weld Fittings Pressure Rating
- Material & Grades of ASME B16.11 Socket weld Fittings

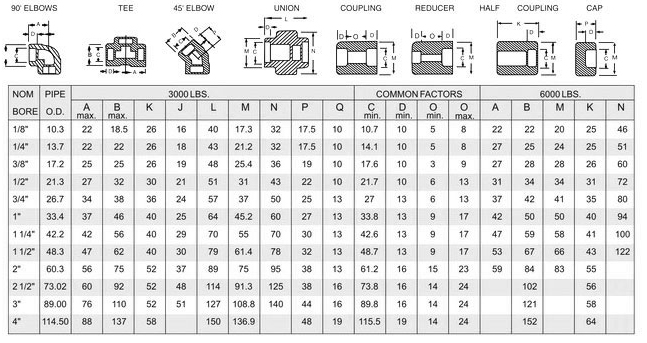

- Socket weld Fittings Dimensions
- 316 ss socket weld fittings Weight Chart
- 304 stainless steel socket weld fittings Size Chart
- SS Socket weld pipe fittings Chemical Equation
- Mechanical Properties of ASME B16.11 Socket weld Fittings
- Equivalent Grade for Stainless Steel Socket Weld Fittings
- Types of ASME B16.11 Socket weld Fittings
- SocketWeld Equal Tee
- ASME B16.11 SocketWeld Unequal Tee
- SS SocketWeld 45° Elbow
- Stainless Steel SocketWeld Equal Cross
- Astm a182 SocketWeld Unequal Cross
- ANSI b16.11 Stainless Steel SocketWeld Reducers
- SocketWeld Concentric Reducer
- SS Socket Weld Eccentric Reducer
- ASME B16.11 Socket Weld Reducer Insert
- Stainless Steel Socket Weld Full Coupling
- Astm A182 SS Socket Weld Half Coupling
- Socket Weld Adapters
- SS Socket Weld Boss
- Stainless Steel Socket Weld Pipe Cap
- Astm A182 Socket Weld Pipe Nipples
We have a large inventory of 304 stainless steel socket weld fittings in almost all sizes, know more about Stainless Steel Socket Weld Fittings Dimensions
The 150# ss socket weld fittings belong to the pressure class 150. There are other pressure classes as well. The socket weld fittings are made usually for smaller pipe sizes ranging below 2 inches in nominal size. There are different grades of materials from which these are made. The 316 ss socket weld fittings are made up of the 316 austenitic stainless steel and are used against chloride ion corrosion stress cracking.
The applications are seen mostly in the marine and sea water industrial applications. The stainless steel socket weld fittings dimensions vary. As mentioned earlier, the pipe fittings range up to 2 inches in diameter. The wall thickness ranges widely with the schedules and pressure classes. The 304 stainless steel socket weld fittings are the most commonly used fittings. They are also the most cost effective solutions for non – specific applications. 150 lb stainless steel socket weld fittings dimensions vary from the other pressure classes. The 150 is one of the most used pressure classes. Please contact us for more product information and pricing.
socketweld fittings are one type of pipe fittings. The fittings get the name as they have a socket welded onto them. There are different types of Stainless Steel Socket Weld Fittings and other type of steel fittings.Reliable Pipes Tubes Ltd. is a leading manufacturer of these products in different scales. There are different types of socket weld fittings. Not all fittings can be made as socket weld. There are stainless steel socket weld couplings which are used to connect two pipes with leak proof tightness. The fittings are made in different pressure classes and schedules.
| Dimension Specification | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Type | Socket Weld |
| Product | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
- Stainless Steel Socketweld Fittings
FOB Price: US $500-1000 / Ton - Socketweld Fittings ANSI B16.11
FOB Price: US $1-1000 / Piece - Socketweld Fittings ASME B16.11
FOB Price: US $0.1-650 / Piece - Stainless Steel SocketWeld Elbow
FOB Price: US $0.50-$23.00 / Piece - 3000 lbs forged socketweld pipe fitting
FOB Price: US $0.20-$39.00 / Piece
Description |
Class Designation |
||
|---|---|---|---|
2000 |
3000 |
6000 |
|
Elbows 45 and 90 degrees Tees, Crosses, Coupling Half-Coupling, Cap |
1/2 – 4 |
1/2 – 2 |
1/2 – 2 |
1/2 – 4 |
1/2 – 2 |
1/2 – 2 |
|
1/2 – 4 |
1/2 – 2 |
1/2 – 2 |
|
Pipe Wall |
SCH 80 / XS |
SCH 160 |
XXS |
Plugs and Bushings are not identified. They may be used up through Class 6000
| Forged SocketWeld Fittings Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| stainless steel socketweld fitting Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| 3000 LB SocketWeld Fitting Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| forged steel socketweld fittings Size | 1/8″~4″ (DN6~DN100) |
Forged Pipe Fittings Type |
Socket Weld | Threaded |
Pressure Class |
2000LBS, 3000LBS, 6000LBS, 9000LBS | 2000LBS,3000LBS, 6000LBS, 9000LBS |
Fittings Form |
Reducer Insert, Boss, Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Weld, Nipple Branch Outlet Butt Weld, 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Branch Outlet Butt Weld, 90° Elbow Outlet Butt Weld, Lateral Outlet Butt | Hex Nipple, Street Elbow, Bull Plug, Boss, Swage Nipple, Tee, Cross, Full Coupling, Half Coupling, Reducing Coupling, Pipe Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Union, Pipe Nipple, Adapter, Union (Male x Female), Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Nipple Branch Outlet, 90° Elbow, 45° Elbow |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size |
1/8″~4″ (DN6~DN100) | 1/8″~4″ (DN6~DN100) |
Thread |
—– |
ISO, DIN, NPT, BSPT |
Manufacturing Standards of Socketweld Fittings
- ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Socketweld Fittings
- ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
- ASME B16.25 – Socketweld Fittings ASME B16.28 – ‘Wrought Steel Socketweld Fittings
- MSS SP-43 – ‘ Wrought and Fabricated Butt-Socket weld Fittings for Low Pressure, Corrosion Resistant Applications
- Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
- The material for forged stainless steel fittings conforms to ASME A182
- The dimensions for forged stainless steel fittings conform to ASME B16.11
90° Socket Weld Elbow
Socket Weld Equal Tee
ASME B16.11 Socket Weld Unequal Tee
SS Socket Weld 45° Elbow
Stainless Steel Socket Weld Equal Cross
Astm a182 Socket Weld Unequal Cross
ANSI b16.11 Stainless Steel Socket Weld Reducers
Socket Weld Concentric Reducer
SS Socket Weld Eccentric Reducer
ASME B16.11 Socket Weld Reducer Insert
Stainless Steel Socket Weld Full Coupling
Astm A182 SS Socket Weld Half Coupling
Socket Weld Adapters
SS Socket Weld Boss
Stainless Steel Socket Weld Pipe Cap
Astm A182 Socket Weld Pipe Nipples
| SIZE | A | B | QTY | WEIGHT |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
½ - 4 | ½ - 2 | ½ - 2 |
| ½ - 4 | ½ - 2 | ½ - 2 | |
| ½ - 4 | ½ - 2 | ½ - 2 | |
| Pipe Size by Wall Thickness |
SCH 80 & XS | SCH 160 | XXS |
