Stainless Steel Elbow

Supplies A Full Range Of stainless steel long radius elbow, short radius SS Elbow Manufacturer In India, ss 90 degree elbow, stainless steel 45 degree elbow At Factory Price In India, Check 180 Degree Pipe Elbow Dimensions

Short radius SS elbow is mostly available in 30 degree short radius with low carbon high alloy austenitic which is widely used in applications where the corrosion properties are not sufficient shirt radius elbow pipe fitting is a compressed air fitting system. It can be installed quickly and easily so that these are time saving.

Stainless Steel Elbow

Stainless Steel Elbow

stainless steel long radius elbow

stainless steel long radius elbow

SS 90 degree elbow

SS 90 degree elbow

long radius elbow 1.5d, ASTM A403 wp 304 Elbow Manufacturers In India, suppliers of long radius elbow 2d, astm a403 wp316 elbow, Carries A Complete Line Of astm a403 wp304l elbow, View asme b16 9 elbow dimensions and 90 Deg Elbow Weight


Stainless steel long radius elbow means the bending radius is 1.5 times of outside diameter, whatever it is 90 or 45 degree elbow. Long elbow radius offers a better corrosion resistance and strength. It is long service life makes it cos-effective. It suits in many industries applications.

SS 90 degree elbow is a fitting device which is bent in such a way to make 90% change in the direction of flow of the content in the pipe. A 90 degree elbow attaches readily to plastic, copper, cast iron, steel, and lead. It can also be attach to rubber with stainless steel. Stainless steel 45 degree elbow is convenient to convey, easy to handle, viable, reliable and come with a good surface finish. 180 degree pipe elbow is long radius consist of a complete semi-circle changing pipe use to connect pipes of different diameters.we are one of the largest SS Elbow Manufacturer In India





SS Elbow
SS Elbow
What is Stainless Steel Elbow ?

Stainless steel elbow is mostly use to change the direction of the liquid flow in piping systems. SS elbow is one of the most used in pipelines. These elbows used in various applications industries like power plants, automobile, heavy engineering and chemical. These stainless steel elbows are available in various shapes, grades, sizes and design. These elbow are mostly design in 45 to 90 angles for the direction change.


astm a403 elbow specification

Standards ASME/ ANSI B16.9, ANSI B16.28, MSS-SP-43
Standard Specification EN10253 Typ A and B, DIN 2605 Part 1 and 2
Size Range Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)
Thickness SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness
Welding Bevel according to EN10253, EN9692-1, DIN2559, ASME B16.25, according to technical drawing
Form Elbow, 45 Deg Elbow, Long Radius Elbow, Short Radius 45 Elbow, LR Elbow, SR Elbow, etc.
Other Stainless Steel Elbow grades ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/2205 Duplex Fittings
Specialize Long Bend with Radius – R = 3D, 5D & 10D
Pigabble Bend & As per your drawing
Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Value Added Service Polish (Electro & Commercial)
Heat Treatment
Annealed & Pickled
Sand Blasting
Machining Etc.
EN EN10253-1, EN10253-2
Manufacture Standard: ASME B16.9 Elbow, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB/T13401, HGJ514, SH3408, SH3409, HG/T21635, HG/T21631, Elbow DIN 2605



Buy astm a403 wp 316l elbow, ASME B16.9 elbow 45 degree At Factory Price In India, Stokholder of Stainless Steel 180 Deg Elbow Long Radius, ASME B16.9 elbow 90 degree, Stainless Steel 45 Deg Short Radius Elbow, 90 Deg Short Radius Elbow, check 180 Deg Elbow Dimensions



types of elbow

  • Buttweld Elbows
  • Forged Elbows
  • Pipe Elbows
  • Threaded Elbows
  • Socketweld Elbows
  • Welded Elbows
  • Seamless Elbows
  • three way Elbows
  • BW LR seamless Elbows
  • 30 degree pipe Elbows
  • Buttweld Pipe Elbows
  • 45 deg Long Radius Elbows
  • Buttweld Elbows 45 Degree
  • Butt Weld Long Radius 45 Degree Elbows
  • 45 Deg. Elbows
  • 45° Short Radius Elbows
  • ANSI B16.9 45 Deg Pipe Fittings Elbows
  • ANSI B16.9 Elbows
  • ASME B16.9 45 deg Long Radius Elbows
  • ASME B16.9 Elbows
  • Schedule 10 45 Degree Elbows
  • 45 Deg Elbows
  • 45 Degree Elbows
  • 45 Degree Buttweld Pipe Elbows
  • Buttweld 45 Degree Elbows
  • Long Radius Elbows
  • LR Elbows
  • SR Elbows
  • Threaded 90 Degree Elbows
  • 90Deg Long Radius Elbows
  • 90Deg Short Radius Elbows
  • 45Deg Long Radius Elbows
  • 45Deg Short Radius Elbows
  • 180Deg Long Radius Elbows
  • 180Deg Short Radius Elbows
  • 1.5D Elbows
  • 1D Elbows
  • 2D Elbows
  • 3D Elbows
  • 4D Elbows
  • 5D Elbows
  • Steel Pipe Elbows
  • Elbows Fittings
  • Tube Elbows
  • Male Elbows
  • Reducing Elbows
  • Female Elbows
  • Short Radius Elbows
  • Street Elbows
  • PTFE Lined Elbows
  • Forged Equal Elbows
  • Forged Round Elbows
  • PP Lined Elbows
  • Tee Elbows



ansi b16.9 elbow material

ASME
  • WPL 3, WPL6, X42, X52, WPHY52, WPHY60
  • S30815, S31000, S31050, S31500, S31726, S31803, S32760, N08904
  • WPA, WPB, WPC, WP1, WP5, WP9, WP11, WP12, WP22, WP32/27, WP91, WP92, WP304, WP304 H, WP304L, WP310, WP316, WP316L, WP316TI, WP321, WP347, WP347H
  • Alloy 800H, DMV310N
EN / (DIN)
  • X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10
  • P215NL (TTST35N/V), 12Ni14 (10Ni14)
  • P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H
  • 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44)
  • L290NB (STE 290.7), L360NB (STE 360.7)
  • 1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878, , 1.4876, 1.4952, 1.4835, 1.4877, 1.4910, Elbow DIN 2605, EN 10253-2 Elbow
  • P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2
Stainless Steel Elbow ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbows Material ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Elbows ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbows ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbows ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Elbows ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )



Stainless Steel elbow manufacturing Standard

Our delivery standard includes all the standard approval test certificates according to EN 10204 with the certification of reductions according to DIN/EN. We also carry items that comply with the VdTÜV material sheets or ASME:
  • DIN 2609
  • From 3.0 mm wall thickness bevelled in compliance with DIN 2559-22 or ASME B 16.25
  • AD 2000-W2
  • ASME B 16.9
  • VdTÜV 421
  • EN 10253-3
  • VdTÜV 1252
  • ASTM / ASME A / SA 815 / 403
  • DIN 2605-1/-2
  • VdTÜV 418
  • EN 10253-4
  • AD 2000-W10



stainless steel elbow sizes

NPS
O.D.
D
90°
Long Rad
Center to End
A
45°
Long Rad
Center to End
B
90°
3D
Center to End
A
45°
3D
Center to End
B
1/2
21.3
38
16


3/4
26.7
38
19
57
24
1
33.4
38
22
76
31
1.1/4
42.2
48
25
95
39
1.1/2
48.3
57
29
114
47
2
60.3
76
35
152
63
2.1/2
73
95
44
190
79
3
88.9
114
51
229
95
3.1/2
101.6
133
57
267
111
4
114.3
152
64
305
127
5
141.3
190
79
381
157
6
168.3
229
95
457
189
8
219.1
305
127
610
252
10
273
381
159
762
316
12
323.8
457
190
914
378
14
355.6
533
222
1067
441
16
406.4
610
254
1219
505
18
457
686
286
1372
568
20
508
762
318
1524
632
22
559
838
343
1676
694
24
610
914
381
1829
757
26
660
991
406
1981
821
28
711
1067
438
2134
883
30
762
1143
470
2286
946
32
813
1219
502
2438
1010
34
864
1295
533
2591
1073
36
914
1372
565
2743
1135
38
965
1448
600
2896
1200
40
1016
1524
632
3048
1264
42
1067
1600
660
3200
1326
44
1118
1676
695
3353
1389
46
1168
1753
727
3505
1453
48
1219
1829
759
3658
1516

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.



stainless steel elbow price list

Size
Stainless Steel Elbow
Price in India
1/2" NB
Schedule 10 Long Radius Elbows
£2.36
3/4" NB
Schedule 40 Long Radius Elbows
£2.50
1" NB
Schedule 40 Short Radius Elbow
£3.32
1-1/4" NB
Schedule 40 Long Radius Elbows
£4.50
1-1/2" NB
Schedule 40 Short Radius Elbow
£4.89
2" NB
Schedule 40 Long Radius Elbows
£7.16
2-1/2" NB
Schedule 40 Short Radius Elbow
£21.65
3" NB
Schedule 80 Long Radius Elbows
£50.34
4" NB
Schedule 80 Long Radius Elbows
£77.35
5" NB
Schedule 80 Short Radius Elbow
£20.16
9" NB
Schedule 80 Short Radius Elbow
£30.16
8" NB
Schedule 80 Long Radius Elbows
£80.50

This is an approximate Cost of Stainless Steel Elbow in India. For factory price buy directly from stainless steel elbow manufacturers In India, check latest ASME B16.9 elbow 90 degree price list & stock sizes please mail us.



Most Common types of Stainless Steel Elbow

90° Long Radius Elbow

90° Long Radius Elbow

45° Long Radius Elbow

45° Long Radius Elbow

stainless steel reducing elbow

stainless steel reducing elbow

stainless steel street elbow

stainless steel street elbow

90° Short Radius Elbow

90° Short Radius Elbow

45° Short Radius Elbow

45° Short Radius Elbow

180° Long Radius Elbow

180° Long Radius Elbow

180° Short Radius Elbow

180° Short Radius Elbow

SS 3D Elbow

SS 3D Elbow

1.5D Elbow

1.5D Elbow

1D Elbow

1D Elbow

Seamless 45 90° Elbow

Seamless 45 90° Elbow

5D Elbow

5D Elbow

Stainless Steel long radius flanged elbow

Stainless Steel long radius flanged elbow

SS short radius exhaust elbow

SS short radius exhaust elbow

Buttweld Elbow 45 Degree

Buttweld Elbow 45 Degree


ss elbow weight chart

WEIGHTS OF ELBOW FITTINGS
NPS
inches
ELBOWS
LR 90°
ELBOWS
SR 90°
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3



dimensions tolerances of ss elbow as per ASME B16.9

Dimensional Tolerances Of Butt Weld Elbows - 45° And 90° - Lr And 3d - Asme B16.9

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6 1.6 + 2.4
- 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Center to End LR (A/B) 2 2 2 2
Center to End 3D (A/B) 3 3 3 3
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End 3.2 4.8 + 6.4
- 4.8
+ 6.4
- 4.8
Center to End LR (A/B) 2 2 3 5
Center to End 3D (A/B) 3 3 6 6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.





90 degree elbow dimensions chart

  • 316 stainless steel casting conform to ACI Grade CF8M (316)
  • 304 stainless steel castings conform to ASTM A351 ACI Grade CF8
  • NPT threads on pipe fittings conform to ASME B1.20.1
  • Manufacturing facility is ISO 9001:2008
  • Certified pipe fittings meet applicable chemical & mechanical properties
  • Quality guarantee on all pipe fittings

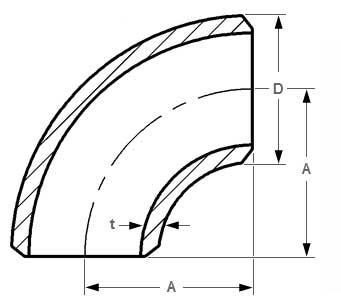

Stainless Steel 90 Degree Elbow Dimension

Stainless Steel 90 Degree Elbow Dimension

NPS
O.D.
D
90deg
Long Radius
Center to End
A
90deg
3D
Center to End
A
1/2
21.3
38
...
3/4
26.7
38
57
1
33.4
38
76
1.1/4
42.2
48
95
1.1/2
48.3
57
114
2
60.3
76
152
2.1/2
73
95
190
3
88.9
114
229
3.1/2
101.6
133
267
4
114.3
152
305
5
141.3
190
381
6
168.3
229
457
8
219.1
305
610
10
273
381
762
12
323.8
457
914
14
355.6
533
1067
16
406.4
610
1219
18
457
686
1372
20
508
762
1524
22
559
838
1676
24
610
914
1829
26
660
991
1981
28
711
1067
2134
30
762
1143
2286
32
813
1219
2438
34
864
1295
2591
36
914
1372
2743
38
965
1448
2896
40
1016
1524
3048
42
1067
1600
3200
44
1118
1676
3353
46
1168
1753
3505
48
1219
1829
3658

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer

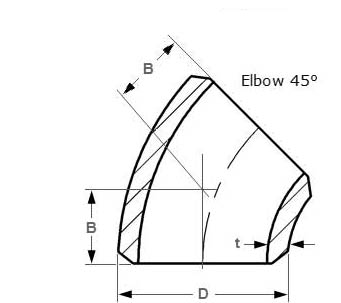

45 degree long radius elbow dimensions

Stainless Steel 45 Degree Elbow Dimensions

Stainless Steel 45 Degree Elbow Dimensions

NPS
O.D.
D
45deg
Long Rad
Center to End
B
45deg
3D
Center to End
B
1/2
21.3
16
...
3/4
26.7
19
24
1
33.4
22
31
1.1/4
42.2
25
39
1.1/2
48.3
29
47
2
60.3
35
63
2.1/2
73
44
79
3
88.9
51
95
3.1/2
101.6
57
111
4
114.3
64
127
5
141.3
79
157
6
168.3
95
189
8
219.1
127
252
10
273
159
316
12
323.8
190
378
14
355.6
222
441
16
406.4
254
505
18
457
286
568
20
508
318
632
22
559
343
694
24
610
381
757
26
660
406
821
28
711
438
883
30
762
470
964
32
813
502
1010
34
864
533
1073
36
914
565
1135
38
965
600
1200
40
1016
632
1264
42
1067
660
1326
44
1118
695
1389
46
1168
727
1453
48
1219
759
1516

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.

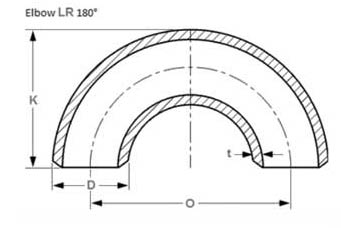

180 Degree long radius elbow dimensions

Stainless Steel 180 Degree Elbow Dimensions

Stainless Steel 180 Degree Elbow Dimensions

NPS
O.D.
D
180deg Long Rad
180deg Short Rad
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
1/2
21.3
76
48
...
...
3/4
26.7
76
51
...
...
1
33.4
76
56
51
41
1.1/4
42.2
95
70
64
52
1.1/2
48.3
114
83
76
62
2
60.3
152
106
102
81
2.1/2
73
190
132
127
100
3
88.9
229
159
152
121
3.1/2
101.6
267
184
178
140
4
114.3
305
210
203
159
5
141.3
381
262
254
197
6
168.3
457
313
305
237
8
219.1
610
414
406
313
10
273
762
518
508
391
12
323.8
914
619
610
467
14
355.6
1067
711
711
533
16
406.4
1219
813
813
610
18
457
1372
914
914
686
20
508
1524
1016
1016
762
22
559
1676
1118
1118
838
24
610
1829
1219
1219
914

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.



difference between short radius and long radius elbow

difference between short radius and long radius elbow

  • In a long radius (LR) elbow the radius of curvature is 1.5 times the nominal diameter. In a short radious (SR) elbow the radius of curvature is 1.0 times the nominal diameter of the pipe. LR elbows give less frictional resistance to the fluid compared to the SR
  • The LR elbow creates less less pressure drop i.e less friction on the other hand The SR elbow creates more pressure drop i.e more friction.
  • The cost of SR elbow is more than LR elbow.



Ready Stock to dispatch

Elbows Description
SIZE"
CONNECTION TYPE
CONSTRUCTION
90 Degree Elbows
1
FNPT
304 Stainless Steel
90 Degree Elbows
2-1/2
FNPT
304 Stainless Steel
90 Degree Elbows
3/8
FNPT
304 Stainless Steel
90 Degree Street Elbows
3/8
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
2
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
2
MNPT X FNPT
304 Stainless Steel
90 Degree Street Elbows
2-1/2
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
1/4
MNPT X FNPT
304 Stainless Steel
90 Degree Street Elbows
4
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
1-1/4
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
3
MNPT X FNPT
304 Stainless Steel
90 Degree Street Elbows
3/8
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
3
MNPT X FNPT
316 Stainless Steel
90 Degree Street Elbows
4
MNPT X FNPT
304 Stainless Steel
90 Degree Elbows
2-1/2
FNPT
316 Stainless Steel
90 Degree Street Elbows
1/2
MNPT X FNPT
304 Stainless Steel
90 Degree Elbows
1/2
FNPT
304 Stainless Steel
90 Degree Elbows
3/4
FNPT
304 Stainless Steel
90 Degree Street Elbows
3/4
MNPT X FNPT
304 Stainless Steel
90 Degree Street Elbows
1
MNPT X FNPT
304 Stainless Steel
90 Degree Elbows
1-1/4
FNPT
304 Stainless Steel
90 Degree Street Elbows
1-1/4
MNPT X FNPT
304 Stainless Steel
90 Degree Street Elbows
1-1/2
MNPT X FNPT
304 Stainless Steel
90 Degree Elbows
1-1/2
FNPT
304 Stainless Steel
90 Degree Elbows
2
FNPT
304 Stainless Steel
90 Degree Street Elbows
2
MNPT X FNPT
304 Stainless Steel
90 Degree Elbows
3/4
FNPT
316L Stainless Steel



Buy Stainless Steel Elbow At Factory Price In India

1-1/2 in. Schedule 10 304L Stainless Steel Long Radius 90 Degree Elbow
1-1/2 in. Schedule 10 304L Stainless Steel Long Radius 90 Degree Elbow
14 in. Schedule 10S 304L Stainless Steel Long Radius 90 Degree Elbow
14 in. Schedule 10S 304L Stainless Steel Long Radius 90 Degree Elbow
3 in. Plain End Schedule 10 Long Radius 316L Stainless Steel 45 Degree Elbow
3 in. Plain End Schedule 10 Long Radius 316L Stainless Steel 45 Degree Elbow
1/8 in. Threaded 150# 316L Stainless Steel 90 Degree Elbow
1/8 in. Threaded 150# 316L Stainless Steel 90 Degree Elbow
1/2 in. Butt Weld Schedule 40 304L Stainless Steel Long Radius 90 Degree Elbow
1/2 in. Butt Weld Schedule 40 304L Stainless Steel Long Radius 90 Degree Elbow
1/4 in. Socket 3000# 304L Stainless Steel 90 Degree Elbow
1/4 in. Socket 3000# 304L Stainless Steel 90 Degree Elbow
1 in. Butt Weld Schedule 40 304L Stainless Steel Long Radius 45 Degree Elbow
1 in. Butt Weld Schedule 40 304L Stainless Steel Long Radius 45 Degree Elbow
1-1/2 in. Butt Weld Schedule 10 316L Stainless Steel Long Radius 45 Degree Elbow
1-1/2 in. Butt Weld Schedule 10 316L Stainless Steel Long Radius 45 Degree Elbow



Value Added Service of ASME B16.9 elbow 90 degree

Quality & Inspection:
  •  EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc

Material Test:

  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test



Application Industries of ASTM A403 wp 304 Elbow

  • Ship building
  • Petrochemical
  • Steel plant
  • Refineries
  • Chemical
  • Fertilizers
  • Power plant
  • Oil & gas
  • Offshore
oil and gas industries



One Stop Shop For DIN 2605 45 Deg Elbow Type 3, Elbow 180 Sch 10, short radius exhaust elbow, Stockist of long radius bend elbow, long radius flanged elbow in Mumbai, India, view Carbon Steel 90 Degree Elbow Fitting and ansi long radius elbow dimensions

long radius elbow 1.5d Chemical Formula

Type Grade ASTM A240 Chemical Composition
ASTM(A240M) Others(JIS) C Si Mn P S Ni Cr Mo Others
Austenitic Steels 304 SUS304 ≤0.07 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 17.5/19.5 N≤0.10
304H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0
304L SUS304L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 17.5/19.5 N≤0.10
304N SUS304N1 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/10.5 18.0/20.0 N:0.10/0.16
304LN SUS304LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 8.0/12.0 18.0/20.0 N:0.10/0.16
309S SUS309S ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 12.0/15.0 22.0/24.0
310S SUS310S ≤0.08 ≤1.50 ≤2.00 ≤0.045 ≤0.030 19.0/22.0 24.0/26.0
316 SUS316 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316L SUS316L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N≤0.10
316H 0.04/0.10 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00
316LN SUS316LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 10.0/14.0 16.0/18.0 2.00/3.00 N:0.10/0.16
317L SUS317L ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N≤0.10
317LN SUS317LN ≤0.030 ≤0.75 ≤2.00 ≤0.045 ≤0.030 11.0/15.0 18.0/20.0 3.0/4.0 N:0.10/0.22
321 SUS321 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/12.0 17.0/19.0 N≤0.10Ti:5ʷʢC+Nʣ/0.70
347 SUS347 ≤0.08 ≤0.75 ≤2.00 ≤0.045 ≤0.030 9.0/13.0 17.0/19.0 Nb:10ʷC/1.00
904L SUS890L ≤0.020 ≤1.00 ≤2.00 ≤0.045 ≤0.035 23.0/28.0 19.0/23.0 4.00/5.00 N≤0.10Cu:1.0/2.0
S31254 ≤0.020 ≤0.80 ≤1.00 ≤0.030 ≤0.010 17.5/18.5 19.5/20.5 6.0/6.5 N:0.18/0.25Cu:0.50/1.00
SUS317J2 ≤0.06 ≤1.50 ≤2.00 ≤0.045 ≤0.030 12.00/16.00 23.00/26.00 0.50/1.20 N:0.25/0.40



Yield Strength Chart of asme b16 9 elbow

Type Mechanical Properties for Stainless Steel Plates
ASTM(A240M) Others(JIS) Tensile Properties Hardness
Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%) HBW HRBW
AusteniticSteels 304 SUS304 ≥205 ≥515 ≥40 ≤201 ≤92
304H ≥205 ≥515 ≥40 ≤201 ≤92
304L SUS304L ≥170 ≥485 ≥40 ≤201 ≤92
304N SUS304N1 ≥240 ≥550 ≥30 ≤217 ≤95
304LN SUS304LN ≥205 ≥515 ≥40 ≤217 ≤95
309S SUS309S ≥205 ≥515 ≥40 ≤217 ≤95
310S SUS310S ≥205 ≥515 ≥40 ≤217 ≤95
316 SUS316 ≥205 ≥515 ≥40 ≤217 ≤95
316L SUS316L ≥170 ≥485 ≥40 ≤217 ≤95
316H ≥205 ≥515 ≥40 ≤217 ≤95
316LN SUS316LN ≥205 ≥515 ≥40 ≤217 ≤95
317L SUS317L ≥205 ≥515 ≥40 ≤217 ≤95
317LN SUS317LN ≥240 ≥550 ≥40 ≤217 ≤95
321 SUS321 ≥205 ≥515 ≥40 ≤217 ≤95
347 SUS347 ≥205 ≥515 ≥40 ≤201 ≤92
N08904/904L SUS890L ≥220 ≥490 ≥35 ≤196 ≤90
S31254 ≥310 ≥655 ≥35 ≤223 ≤96
SUS317J2 ≥345 ≥690 ≥40 ≤250 ≤100



Equivalent material grade of long radius bend elbow

S G4304 ASTM UNS KS EN10095 AS CNS
SUS201 201 S20100 STS201 1.4372 201-2 201
SUS202 202 S20200 STS202 1.4373 202
SUS301 301 S30100 STS301 1.4319 301 301
SUS304 304 S30400 STS304 1.4301 304 304
SUS304L 304L S30403 STS304L 1.4306 304L 304L
SUS304N1 304N S30451 STS304N1 1.4315 304N1 304N1
SUS304N2 XM21 S30452 STS304N2 304N2 304N2
SUS304LN 304LN S30453 STS304LN 304LN 304LN
SUS305 305 S30500 STS305 1.4303 305 305
SUS309S 309S S30908 STS309S 1.4833 309S 309S
SUS310S 310S S31008 STS310S 1.4845 310S 310S
SUS316 316 S31600 STS316 1.4401 316 316
SUS316Ti 316Ti S31635 1.4571 316Ti 316Ti
SUS316L 316L S31603 STS316L 1.4404 316L 316L
SUS316N 316N S31651 STS316N 316N 316N
SUS316LN 316LN S31653 STS316LN 1.4429 316LN 316LN
SUS316J1 STS316J1 316J1 316J1
SUS316J1L STS316J1L 316J1L
SUS317 317 S31700 STS317 317 317
SUS317L 317L S31703 STS317L 1.4438 317L 317L
SUS321 321 S32100 STS321 1.4541 321 321
SUS347 347 S34700 STS347 1.455 347 347
SUS329J1 329 S32900 STS329J1 1.4477 329J1 329J1
SUS329J3L S31803 STS329J3L 1.4462 329J3L 329J3L
SUS405 405 S40500 STS405 1.4002 405 405
SUH409 409 S40900 STS409 1.4512 409L 409L
SUS410L STS410L 410L 410L
SUS430 430 S43000 STS430 1.4016 430 430
SUS434 434 S43400 STS434 1.4113 434 434
S43940 1.4509 439 439
SUS444 444 S44400 STS444 1.4521 444 444
SUS403 403 S40300 STS403 403 403
SUS410 410 S41000 STS410 1.4006 410 410
SUS420J1 420 S42000 STS420J1 1.4021 420 420J1
SUS420J2 STS420J2 1.4028 420J2 420J2
SUS440A 440A S44002 STS440A 440A 440A



We maintain Stock of ASME B16.9 elbow

  • Stainless Steel Elbows
  • High Nickel Alloy Elbows
  • Forged Reducing Elbows
  • 3/4 Stainless Steel Elbows
  • Stainless Steel Short Radius 45 Degree Elbows
  • Carbon Steel Buttweld Elbows
  • 1 1/4 Stainless Steel Elbows
  • Manufacturers of Carbon Steel Pipe Elbows
  • Super Duplex Steel Elbows
  • 180 Degree Stainless Steel Pipe Elbows
  • Carbon Steel 90 Degree Elbows
  • Elbows DIN 2605
  • Carbon Steel Elbows
  • Alloy steel 90 Deg Elbows
  • 6 Inch Stainless Steel 90 Degree Elbows
  • Stainless Steel 180 Degree Elbows
  • Titanium Elbows
  • Stainless Steel 90 Degree Short Radius Elbows
  • Stainless Steel 180 Degree Short Radius Elbows
  • Inconel Elbows
  • Carbon Steel ASTM A234 WPB Elbows
  • Seamless Stainless Steel Elbows
  • 1/2 Stainless Steel Elbows
  • Welded 90 Degree Elbows
  • 30 Degree Carbon Steel Elbows
  • 3 Inch Stainless Steel 90 Degree Elbows
  • Schedule 40 Welded Elbows
  • Stainless Steel Seamless Elbows
  • Stainless Steel 45 Degree Elbows
  • Schedule 80 Long Radius Ebow
  • Stainless Steel Exhaust Elbows
  • LTCS A420 WPL6 Elbows in India
  • Carbon Steel Flanged Elbows Manufacturers in India
  • Stainless Steel 180 Degree Long Radius Elbows
  • 4 Inch Stainless Steel 45 Degree Elbows
  • Carbon Steel Reducing Elbows Suppliers
  • Carbon Steel Seamless Elbows Manufacturers
  • Stainless Steel 90 Degree Long Radius Elbows Manufacturers
  • Alloy steel 45 Deg Elbows Manufacturers India
  • Stainless Steel 45 Degree Street Elbows Manufacturers
  • 90 Degree Stainless Steel Elbows Suppliers
  • 2.5 Stainless Steel 45 Degree Elbows
  • Manufacturers of 22.5 Degree Carbon Steel Elbows
  • SS ASME/ANSI B16.9 Elbows Manufacturers in India
  • Stainless Steel 90 Degree Elbows 1/2 Suppliers
  • EN 10253-2 Elbows Suppliers in India
  • ASTM A234 WPB Sch 80 Elbows Manufacturers
  • Carbon Steel Elbows Suppliers
  • Seamless 90 Elbows Manufacturers in India
  • Elbows Forged Steel Manufacturers in India
  • ASME B16.9 Elbows Suppliers in India
  • Industrial Pipe Elbows Manufacturers
  • Duplex Steel Buttweld Elbows Manufacturers
  • Hastelloy Elbows Manufacturers
  • Carbon Steel Drip Pan Elbows Manufacturers in India
  • Stainless Steel 45 Degree Long Radius Elbows
  • Elbows 45 Degree LR Manufacturers in India
  • Long Radius Stainless Steel Elbows India
  • Stainless Steel 90 Degree Elbows Manufacturers in India
  • Alloy Steel Elbows Manufacturers in India
  • Schedule 40 Long Radius Elbows Manufacturers
  • Seamless 90 Elbows Manufacturers in India
  • ANSI B16.9 Elbows Manufacturers
  • Copper Nickel Elbows Manufacturers in India



Biggest supplier of short radius reducing elbow, Carbon Steel SCH 80 180 Degree Elbow, wholesaler of Stainless Steel 90 Degree Compression Elbow, 45 Degree Mitered Elbow, Trader of Carbon Steel 45 Degree Elbow Fitting, Elbow 90 Degree Sch 80 dimensions



© 2020 RELIABLE PIPES & TUBES LTD. All rights reserved.
