This is an approximate Cost of ASME B16.9 Equal Tee Fitting in India. For factory price buy directly from SS Tee Fitting Manufacturers In India, check latest Equal Tee And Reducing Tee price list & stock sizes please mail us.



Material specification of Stainless Steel Equal Tee

Standards ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule Sch 5 TO Sch XXS.
Sizes 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Materials Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type Butt Weld (BW) / Seamless / Welded / ERW / Fabricated Equal Tee, Reducing Tee, Straight Tee, Pipe Tee, Pipe Cross
Outside diameter Seamless Pipe Tee ( 1/2~24), ERW / Welded / Fabricated Pipe Tee (1/2~48), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS, (1,65 – 59.51 mm)
Wall Thickness 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Variations Welded & Seamless
Value Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel



Our Supply Range

For Butt Weld Tee

  • Standard: ASTM A234, MSS SP-75, ASTM A403
  • Types: Equal Tee and Reducing Tee (Tee Reducer)
  • Size Range: 1/2”, 1”, 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16”, 20” to 48”.
  • Thickness: SCH 10, SCH 40, SCH 80
  • Surface Coatings: Black Painted, Varnished, Epoxy Coated, Galvanized

For Socket Weld Tee (and Threaded Tee)

  • Standard: ASTM A105, ASTM A182
  • Dimensions: 1/2”, 1”, 1/2”, 2” and up to 4”
  • Pressure Ratings: 2000#, 3000#, 6000#, 9000#



Special price for ASME B16.9 Reducing Tee, Bw Equal Tee, Reducing Tee En 10253-2 manufacturer in mumbai, india, find ASME B16.9 Equal Tee and unequal tee dimensions and unequal tee weight chart



Manufacturing Standards of ASME B16.9 Tee, ASME B16.9 Reducing Tee

  • ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
  • DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
  • EN: EN10253-1, EN10253-2
  • ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
  • ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
  • ASME B16.25 – Buttwelding Ends ASME B16.28 – ‘Wrought Steel Equal Tee & Cross
  • MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



How many types of steel pipe tee?

According to branch diameters and functions there are:

  • Equal Tee
  • Reducing Tee (Reducer Tee).

According to connection types are:

  • Butt Weld Tee
  • Socket Weld Tee
  • Threaded Tee.

According to material types there are:

  • Carbon Steel Pipe Tee
  • Alloy Steel Tee
  • Stainless Steel Tee



Types of Stainless Steel Pipe Fitting Tee

  • Saddle Tees
  • Tees Pipe Fittings
  • Forged Reducing Tees
  • Forged Lateral Tees
  • Forged STeesl Tees
  • Forged Barred Tees
    Forged Welding Tees
  • Threaded Tees
  • Threaded Reducing Tees
  • Threaded Tees Fittings
  • Threaded Pipe Reducing Tees
  • Socket Weld Reducing Tees
  • Socket Weld Tees
  • Buttweld Tees
  • Unequal Tees
  • Ansi B16.9 Pipe Tees Fittings
  • Asme B16.9 Pipe Tees Fittings
  • Buttweld Equal Tees
  • Equal Teess
  • Butt Weld Equal Tees
  • Barred Tees Pipe Fittings
  • Sw Tees Pipe Fittings
  • Y Tees Pipe Fittings
  • Pipe Reducing Tees
  • Asme B16.9 Unequal Tees
  • Buttweld Reducing Tees
  • Reducing Tees
  • Outlet Tees
  • Lateral Tees
  • Straight Teess
  • Equal Tees
  • Tube Tees
  • Pipe Tees
  • Tees Fittings
  • Equal Tees Fittings
  • Pipe Tees Connector


ASME B16.9 Stainless Steel Equal Tee Fitting Definition

Tees connect three lines of the same OD. Standard material is 300 series stainless.

Reducing tee is another type of pipe tee used in pipe and tube fittings. Reducing tee, like all pipe tees is in the shape of T with two ends of equal size and the third one slightly smaller. In other words, reducing tee is a type of pipe fittings in which the branch port size is smaller than the ports of the run.Equal tees are those tees which are the branch diameter of the tee is same with the main pipe or run pipe diameter of this tee. There are straight pipe tees which have the same size openings. Equal tee make them open of various size and two openings of the same size.

Manufacturing Material of stainless steel tee fittings

Stainless Steel ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L
Super Duplex Steel S32750
Duplex Steel ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Carbon Steel ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
Alloys Steel ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.
Nickel Alloys Nickel Alloys 200, Nickel Alloys 201
Titanium Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI
Inconel Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L
Hastelloy Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G
Molybdenum ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum
Cobalt Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21
Niobium ASTM B394, R04200 R04210
Nimonic Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc
Tungsten W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten
Nichrome Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc
Magnesium Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc.
Tantalum Tantalum - Grade 1.
Monel Monel 400, Monel k500
MU-METAL MU-METAL
Zirconium Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4
Beryllium Copper Alloy 25 UNSC17200
Aluminium 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175
Copper Alloys C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000



Most frequent types ASME B16.9 Buttweld Equal Tee

ASME B16.9 Equal Tee Fitting

ASME B16.9 Equal Tee Fitting

ansi b16.9 unequal tee

ansi b16.9 unequal tee

Reducing Tee En 10253-2

Reducing Tee En 10253-2

Stainless Steel Barred Equal Tee

Stainless Steel Barred Equal Tee

SS Bw Equal Tee

SS Bw Equal Tee

Ferritic Stainless Steel Equal Flow Tee

Ferritic Stainless Steel Equal Flow Tee

asme b16.9 straight tee

asme b16.9 straight tees

Grooved Equal Tee

Grooved Equal Tees

Martensitic Stainless Steel Equal Fabricated Tee

Martensitic Stainless Steel Equal Fabricated Tee

asme b16.9 lateral tee

asme b16.9 lateral tee

unequal tee pipe fitting

unequal tee pipe fitting

ANSI B16.9 Pipe Reducing Tee

ANSI B16.9 Pipe Reducing Tee


difference between equal tee and reducing tee

  • Steel Equal Tees pipe fittings: The three branches of tee have same diameters.
  • Steel Reducing Tees / Reducer tee pipe fittings: The branch diameter is smaller than the main line diameter.
  • Tee reducer is usually described as NPS diameters in 4” x 4” x 3”, 4” is the main line pipe diameter, and 3” is the reducing branch.
  • Reducing tees is used more than equal tee since it has more functions and available for more environments.
  • A straight or equal buttwelding Tees is available for all common diameters.
  • A Reducing Tees not, because many diameters are not produced, or can not be produced.



difference between equal and unequal tee

  • An equal tee-piece is where the pipe intersecting the main header pipe is the same diameter as the header pipe.
  • An unequal tee-piece is where the pipe intersecting the main header pipe is of a smaller diameter than the header pipe
  • Generally the mitre line or the joint line of an equal tee-piece will intersect as far as the centre line of the main header pipe.
  • The mitre line or joint line of an unequal tee-piece will not intersect as far as the centre line of the main header pipe.



Butt Weld Tee vs Socket Weld Tee vs Threaded Tee

Butt Weld Tees

Ends in plain or beveled, connected by butt welding process. It can withstand higher pressure than other types.

Socket Weld Tees

Socket weld tee is a kind of high pressure pipe connection fitting. Like the other fittings, it has a trapezoidal area where the pipe can inserted into the tee branch and weld together.

Threaded Tees

In the manufacturing process, threaded pipe tee has forging and casing process. Forging is formed by heating forging with ingots or round bars, then turning on a lathe to process threads.



ASME B16.9 Tee Dimensions Table

  • 304 stainless steel castings conform to ASTM A351 ACI Grade CF8
  • 316 stainless steel casting conform to ACI Grade CF8M (316)
  • NPT threads on pipe fittings conform to ASME B1.20.1
  • Manufacturing facility is ISO 9001:2008
  • Certified pipe fittings meet applicable chemical & mechanical properties
  • Quality guarantee on all pipe fittings

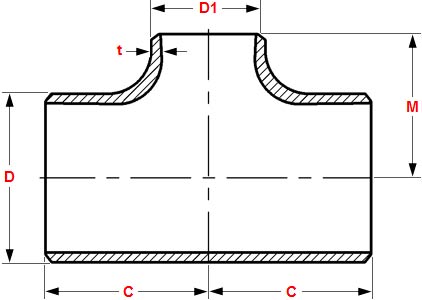

ASME B16.9 Tee Dimensions Table

Nominal Pipe Size (Inches)
Outside diameter
at bevel
Center-to-End
Run (C)
Outlet(M)
1/2
21.3
25
25
3/4
26.7
29
29
1
33.4
38
38
1 1/4
42.2
48
48
1 1/2
48.3
57
57
2
60.3
64
64
2 1/2
73.0
76
76
3
88.9
86
86
3 1/2
101.6
95
95
4
114.3
105
105
5
141.3
124
124
6
168.3
143
143
8
219.1
178
178
10
273.0
216
216
12
323.8
254
254
14
355.6
279
279
16
406.4
305
305
18
457.0
343
343
20
508.0
381
381
22
559.0
419
419
24
610.0
432
432

The dimensions are in millimeters
Source : ASME B16.9 Tee – 2007

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.



Unequal Tee Dimensions Chart

NOMINAL PIPE SIZE
OUTSIDE DIAMETER
CENTER TO END
Inch
D
P
C
M
1/2 x 3/8
21.3
17.1
25
25
1/2 x 1/4
21.3
13.7
25
25
3/4 x 1/2
26.7
21.3
29
29
3/4 x 3/8
26.7
17.1
29
29
1 x 3/4
33.4
26.7
38
38
1 x 1/2
33.4
21.3
38
38
1 1/4 x 1
42.2
33.4
48
48
1 1/4 x 3/4
42.2
26.7
48
48
1 1/4 x 1/2
42.2
21.3
48
48
1 1/2 x 1 1/2
48.3
42.2
57
57
1 1/2 x 1
48.3
33.4
57
57
1 1/2 x 3/4
48.3
26.7
57
57
1 1/2 x 1/2
48.3
21.3
57
57
2 x 1 1/2
60.3
48.2
64
60
2 x 1 1/4
60.3
42.2
64
57
2 x 1
60.3
33.4
64
51
2 x 3/4
60.3
26.7
64
44
2 1/2 x 2
73
60.3
76
70
2 1/2 x 1 1/2
73
48.3
76
67
2 1/2 x 1 1/4
73
42.2
76
64
2 1/2 x 1
73
33.4
76
57
3 x 2 1/2
88.9
73
86
83
3 x 2
88.9
60.3
86
76
3 x 1 1/2
88.9
48.3
86
73
3 x 1 1/4
88.9
42.2
86
70
3 1/2 x 3
101.6
88.9
95
92
3 1/2 x 21/2
101.6
73
95
89
3 1/2 x 2
101.6
60.3
95
83
3 1/2 x 1 1/2
101.6
48.3
95
79
4 x 3 1/2
114.3
101.6
105
102
4 x 3
114.3
88.9
105
98
4 x 2 1/2
114.3
73
105
95
4 x 2
114.3
60.3
105
89
4 x 1 1/2
114.3
48.3
105
86
5 x 4
141.3
114.3
124
117
5 x 3 1/2
141.3
101.6
124
114
5 x 3
141.3
88.9
124
111
5 x 2 1/2
141.3
73
124
108
5 x 2
141.3
60.3
124
105
6 x 5
168.3
141.3
143
137
6 x 4
168.3
114.3
143
130
6 x 3 1/2
168.3
101.6
143
127
6 x 3
168.3
88.9
143
124
6 x 2 1/2
168.3
73
143
121
8 x 6
219.1
168.3
178
168
8 x 5
219.1
141.3
178
162
8 x 4
219.1
114.3
178
156
8 x 3 1/2
219.1
101.6
178
152
10 x 8
273.1
219.1
216
203
10 x 6
273.1
168.1
216
194
10 x 5
273.1
141.3
216
191
10 x 4
273.1
114.3
216
184
12 x 10
323.9
273.1
254
241
12 x 8
323.9
219.1
254
229
12 x 6
323.9
168.3
254
219
12 x 5
323.9
141.3
254
216
14 x 12
355.6
323.9
279
270
14 x 10
355.6
273.1
279
257
14 x 8
355.6
219.1
279
248
14 x 6
355.6
168.3
279
238
16 x 14
406.4
355.6
305
305
16 x 12
406.4
323.9
305
295
16 x 10
406.4
273.1
305
283
16 x 8
406.4
219.1
305
273
16 x 6
406.4
168.3
305
264
18 x 16
457
406.4
343
330
18 x 14
457
355.6
343
330
18 x 12
457
323.9
343
321
18 x 10
457
273.1
343
308
18 x 8
457
219.1
343
298
20 x 18
508
457
381
368
20 x 16
508
406.4
381
356
20 x 14
508
355.6
381
356
20 x 12
508
323.9
381
346
20 x 10
508
273.1
381
333
20 x 8
508
219.1
381
324
22 x 20
559
508
419
406
22 x 18
559
457
419
394
22 x 16
559
406.4
419
381
22 x 14
559
355.6
419
381
22 x 12
559
323.9
419
371
24 x 10
559
273.1
419
359
24 x 22
610
559
432
432
24 x 20
610
508
432
432
24 x 18
610
457
432
419
24 x 16
610
406.4
432
406
24 x 14
610
355.6
432
406
24 x 12
610
323.9
432
397
24 x 10
610
273.1
432
384
All Dimensions are in mm



Buttweld Reducing Tee Dimensions Chart

Stainless Steel Reducing Tee Dimensions

Nominal Pipe Size (Inches)
Outside diameter
at bevel
Center-to-End
Run
Outlet
Run
Outlet
Run (C)
Outlet (M)
1/2
1/4
3/8
21.3
13.7
17.3
25
25
3/4
3/8
1/2
26.7
17.3
21.3
29
29
1
1/2
3/4
33.4
21.3
26.7
38
38
1 1/4
1/2
3/4
1
42.2
21.3
26.7
33.4
48
48
1 1/2
1/2
3/4
1
1 1/4
48.3
21.3
26.7
33.4
42.2
57
57
2
3/4
1
1 1/4
1 1/2
60.3
26.7
33.4
42.2
48.3
64
44
51
57
60
2 1/2
1
1 1/4
1 1/2
2
73.0
33.4
42.2
48.3
60.3
76
57
64
67
70
3
1 1/4
1 1/2
2
2 1/2
88.9
42.2
48.3
60.3
73.0
86
70
73
76
83
3 1/2
1 1/2
2
2 1/2
3
101.6
48.3
60.3
73.0
88.9
95
79
83
89
92
4
1 1/2
2
2 1/2
3
3 1/2
114.3
48.3
60.3
73.0
88.9
101.6
105
86
89
95
98
102
5
2
2 1/2
3
3 1/2
4
141.3
60.3
73.0
88.9
101.6
114.3
124
105
108
111
114
117
6
2 1/2
3
3 1/2
4
5
168.3
73.0
88.9
101.6
114.3
141.3
143
121
124
127
130
137
8
3 1/2
4
5
6
219.1
101.6
114.3
141.3
168.3
178
152
156
162
168
10
4
5
6
8
273.0
114.3
141.3
168.3
219.1
216
184
191
194
203
12
5
6
8
10
323.8
141.3
168.3
219.1
273.0
254
216
219
229
241
14
6
8
10
12
355.6
168.3
219.1
273.0
323.8
279
238
248
257
270
16
6
8
10
12
14
406.4
168.3
219.1
273.0
323.8
355.6
305
264
273
283
295
305
18
8
10
12
14
16
457.0
219.1
273.0
323.8
355.6
406.4
343
298
308
321
330
330
20
8
10
12
14
16
18
508.0
219.1
273.0
323.8
355.6
406.4
457.0
381
324
333
346
356
356
368
22
10
12
14
16
18
20
559.0
273.0
323.8
355.6
406.4
457.0
508.0
419
359
371
381
381
394
406
24
10
12
14
16
18
20
22
610.0
273.0
323.8
355.6
406.4
457.0
508.0
559.0
432
384
397
406
406
419
432
432

The dimensions are in millimeters
Source : ASME B16.9 Tee– 2018



SS Equal Tee Weight Chart

Stainless Steel Straight Tee Weight Chart, Equal Tee Weight, Reducing Tee Weight in Kg

Sch STD
Sch XS
NPS
LBS
KG
LBS
KG
1/2
0.35
0.16
0.45
0.2
3/4
0.45
0.2
0.6
0.27
1
0.75
0.34
0.88
0.4
1.1/4
1.3
0.59
1.6
0.73
1.1/2
2
0.91
2.25
1.02
2
3.5
1.59
4
1.81
2.1/2
6
2.72
7
3.18
3
7
3.18
8.5
3.86
3.1/2
9
4.08
12
5.44
4
12
5.44
15.8
7.17
5
21
9.53
26
11.79
6
34
15.42
40
18.14
8
55
24.95
75
34.02
10
85
38.56
105
47.63
12
120
54.43
160
72.57
14
165
74.84
240
108.86
16
195
88.45
280
127.01
18
249
112.94
332
150.59
20
342
155.13
480
217.72
22
414
187.79
550
249.48
24
528
239.5
610
276.69
26
770
349.27
875
396.89
30
1060
480.81
1200
544.31
36
1490
675.85
1700
771.11
NPS
LBS
KG
LBS
KG



Straight Tee Schedule 160 Weights

NPS
LBS
KG
1/2
0.36
0.16
3/4
0.58
0.26
1
1
0.45
1.1/4
2
0.91
1.1/2
3
1.36
2
5
2.27
2.1/2
8
3.63
3
10
4.54
3.1/2
4
25
11.34
5
55
24.95
6
62
28.12
8
110
49.9
10
260
117.93
12
480
217.72
NPS
LBS
KG



Pipe Tee Size Chart

NPS
O.D.
D
O.D.
D1
Center to End
C
Center to End
M
3/4 - 1/2
26.7
21.3
29
29
1 - 1/2
33.4
21.3
38
38
1 - 3/4
33.4
26.7
38
38
1.1/4 - 1/2
42.2
21.3
48
48
1.1/4 - 3/4
42.2
26.7
48
48
1.1/4 - 1
42.2
33.4
48
48
1.1/2 - 1/2
48.3
21.3
57
57
1.1/2 - 3/4
48.3
26.7
57
57
1.1/2 - 1
48.3
33.4
57
57
1.1/2 - 1.1/4
48.3
42.2
57
57
2 - 3/4
60.3
26.7
64
44
2 - 1
60.3
33.4
64
51
2 - 1.1/4
60.3
42.2
64
57
2 - 1.1/2
60.3
48.3
64
60
2.1/2 - 1
73
33.4
76
57
2.1/2 - 1.1/4
73
42.2
76
64
2.1/2 - 1.1/2
73
48.3
76
67
2.1/2 - 2
73
60.3
76
70
3 - 1.1/4
88.9
42.2
86
70
3 - 1.1/2
88.9
48.3
86
73
3 - 2
88.9
60.3
86
76
3 - 2.1/2
88.9
73
86
83
3.1/2 - 1.1/2
101.6
48.3
95
79
3.1/2 - 2
101.6
60.3
95
83
3.1/2 - 2.1/2
101.6
73
95
89
3.1/2 - 3
101.6
88.9
95
92
4 - 1.1/2
114.3
48.3
105
86
4 - 2
114.3
60.3
105
89
4 - 2.1/2
114.3
73
105
95
4 - 3
114.3
88.9
105
98
4 - 3.1/2
114.3
101.6
105
102

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.



Dimensional Tolerances Of Asme B16.9 Straight Tee

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8 10 to 18 20 to 24 26 to 30 32 to 48
Outside Dia
at Bevel (D)
+1.6
-0.8
1.6 1.6 +2.4
-1.6
+4
-3.2
+6.4
-4.8
+6.4
-4.8
+6.4
-4.8
Inside Dia at End 0.8 1.6 1.6 1.6 3.2 4.8 +6.4
-4.8
+6.4
-4.8
Center to End (C / M) 2 2 2 2 2 2 3 5
Wall Thk (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.



Get Attractive Price on below

1/8 in. Threaded 150# 304L Stainless Steel Tee
1/8 in. Threaded 150# 304L Stainless Steel Tee
1 in. Schedule 10 304L Stainless Steel Tee
1 in. Schedule 10 304L Stainless Steel Tee
1/8 in. Threaded 150# 316L Stainless Steel Tee
1/8 in. Threaded 150# 316L Stainless Steel Tee
1 in. Threaded 150# 316 Stainless Steel Tee
1 in. Threaded 150# 316 Stainless Steel Tee
1-1/2 in. Weld Schedule 10 316L Stainless Steel Tee
1-1/2 in. Weld Schedule 10 316L Stainless Steel Tee
1 x 1 x 1/2 in. Weld Schedule 10 316L Stainless Steel Reducing Tee
1 x 1 x 1/2 in. Weld Schedule 10 316L Stainless Steel Reducing Tee
1/8 in. Threaded 150# 304 Stainless Steel Tee
1/8 in. Threaded 150# 304 Stainless Steel Tee
1-1/2 in. Socket 3000# 304L Stainless Steel Tee
1-1/2 in. Socket 3000# 304L Stainless Steel Tee

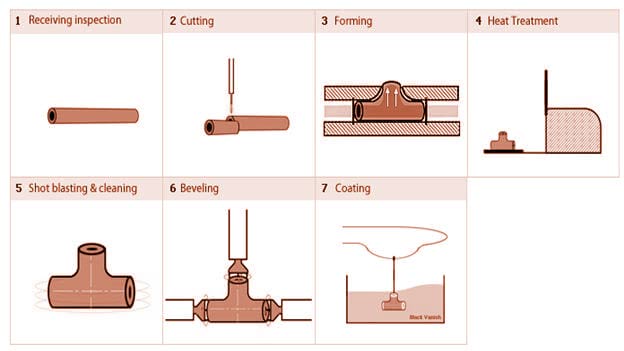

pipe tee manufacturing process

To manufactured pipe tee various methods are used, these are the different type of Hot and cold forming process.

  • These methods are
    • Hot forming or Extrusion Method
    • Hydraulic Bulge method – Cold forming
    • UO or Single weld seam Method
    • Monaka or Double weld seam Method

Hydraulic Bulge Method

Hydraulic Bulge method is used to manufacture Tee. Cut piece of Pipe is placed in hydraulic die and liquid is fill inside the pipe, Hydraulic pressure pushes out the branch, in the fixed opening in the die. This method gives the good surface finish. However, higher thickness Tee cannot be manufactured by this method.

pipe tee manufacturing process



Hot Extrusion Method

Tee with large diameters, heavy wall thickness and /or special material with challenging workability that cannot be manufactured using the hydraulic bulge method are manufactured using hot Extrusion Method. In hot Extrusion Method, Normally Bigger diameter pipe is used than the finished product size, the branch outlet is extruded from the pipe with help of extrusion tool. Other dimensions of body and branch can also be adjusted by pressing the die if required.



buy Stainless Steel Tee in india

  • Sch 40 Tees
  • ASME B16.28 Buttweld Equal Cross
  • Butt Weld Pipe Equal Cross
  • STeesl Equal Cross Pipe Fittings
  • ASME B16.9 Reducing Tees
  • Stainless STeesl Mechanical Tees
  • Inconel Butt weld Equal Cross
  • Schedule 80 STeesl Pipe Tees
  • High Quality Equal Cross
  • Copper Nickel Equal Cross
  • Stainless STeesl Equal and Unequal Tees
  • SS Equal Tees
  • Seamless Butt weld Equal Tees
  • SS Equal Cross Fittings
  • Stainless STeesl Straight Tees
  • Stainless STeesl Elbow Tees
  • Carbon STeesl Unequal Tees
  • 1/2 Stainless STeesl Tees
  • Hastelloy Equal Cross Stockist
  • Tees ASTM A234 WPB
  • Duplex STeesl Buttweld Equal Cross
  • Stainless STeesl Reducing Tees
  • Flanged Stainless STees Tees
  • Stainless STeesl Unequal Tees
  • ASTM A403 Stainless STeesl Equal Tees
  • ASME B16.9 Butt weld Equal Tees
  • Stainless STeesl Equal Tees
  • Super Duplex STeesl Buttweld Equal Tees
  • Stainless STeesl Tees
  • Straight Tees
  • Reducing Stainless STees Tees
  • Carbon STeesl Equal Tees
  • 1 inch Stainless STees Tees
  • ANSI B16.9 Equal Tees
  • Stainless STeesl Tees
  • Stainless STeesl Flanged Tees
  • Schedule 10 Reducing Tees
  • Buttweld Equal Tees
  • High Nickel Alloy Equal Tees
  • Stainless STeesl Split Tees
  • Titanium Buttweld Equal Tees
  • 304L Stainless STeesl Reducing Tees
  • Stainless STeesl Pipe Tees
  • Equal Tees
  • ASTM A403 Tees
  • Welded Butt weld Equal Tees



Ready Stock of Reducing Tee En 10253, Carbon Steel Equal Tee Pipe Fitting, wholesaler of Carbon Steel Reducing Lateral Tee, stockholder of ASME B16.9 Unequal Tee, find Stainless Steel Equal Tee Fitting stock



Application Industries of ASME B16.9 Equal Tee Fitting

  • Machines and equipment
  • Heat Exchanger
  • Chemical Industries
  • Oil and gas transmissions
  • Sanitary tubing
  • Power stations
  • Petroleum and Oil refining
  • Water treatment systems



Hot sale of Galvanised Reducing Tee, Grooved Reducing Tee, stockist of Extruded Reducing Tee, dealer of Equal Flow Tee, check Stainless Steel Reducing Tee Pipe Fitting price and Reducing Tee Dimensions



© 2020 RELIABLE PIPES & TUBES LTD. All rights reserved.
