Stainless steel pipe reducer is a kind of pipe fittings used in process piping that reduces the pipe size from a large bore to a smaller bore inner diameter. The length of the reduction is usually equal to the average of the larger and smaller pipe diameters. There are two main types of reducer. Concentric reducers and eccentric reducers.

Stainless Steel Pipe reducer

Stainless Steel Pipe reducer

SS Eccentric Pipe Reducer

SS Eccentric Pipe Reducer

ANSI B 16.9 Concentric Reducer

ANSI B 16.9 Concentric Reducer

Buy From ANSI B 16.9 Concentric Reducer, stainless steel pipe reducer fittings Suppliers, Stockist of stainless steel exhaust pipe reducer, stainless steel flanged concentric reducer, Exporter of stainless steel tube reducer, view ASME B16 9 Eccentric Reducer Dimensions

A pipe reducer and attachment of pipe reducers. A pipe reducer is a major pipe fitting that is responsible for reducing the size of pipe by decreasing the inner diameter. Stainless steel pipe reducers are in short, alter and can change the size of the paper.

How to attach pipe reducers? There are following steps which helps us to in the attachment of pipe reducers.

Step 1 is to adjust the existing pipes before adding a pipe reducer into the plumbing lines.
Step 2 is to attach one side of the pipe reducer.



what is mean by stainless steel pipe reducer ?

Stainless steel concentric reducers are a component where the center of both the ends of the larger diameter opening and the smaller diameter opening lies on the same axis. Stainless steel eccentric reducers are those in which the center of lines of both the pipes lie on the separate axis. These reducers are also responsible for maintaining the bottom of the pipe elevation of a particular pipe.



specification chart of SS Reducer

Standards ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule Sch 5 TO Sch XXS.
Sizes 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” )
Outside Diameter Seamless Pipe Reducer ( 1/2″~24″), ERW / Welded / Fabricated Pipe Reducer (1/2″~48″)
Materials Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type Butt Weld (BW) / Seamless / ERW / Welded / Fabricated  Concentric Reducers, Eccentric Reducers
Wall Thickness:  3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services  Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel, Copper
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313



stainless steel pipe reducer price in india

pipe reducer Price Range Unit
6 inch welded stainless steel pipe reducer $1.00-$10.00 USD/Piece
connectors pipe fittings reducer $0.50-$25.00 USD/Piece
stainless steel PVC pipe reducer $11.50-$15.02 USD/Piece
pipe fitting eccentric / concentric reducer types 1/2” SCH10s $1.00-$100.00 USD/Piece
Stainless steel welding pipe fittings Eccentric Reducer $2.00-$10.00 USD/Piece
Stainless Steel Butt Weld Pipe Fittings Concentric Reducer $10.00-$50.00 USD/Piece
schedule 40 stainless steel pipe reducer $1.00-$10.00 USD/Piece
butt weld thick wall reducer $6.10-$7.60 USD/Kilogram
ansi b16.5 gr2 titanium pipe reducer $4.80-$900.00 USD/Piece
Brass material H59 hex head bushing brass thread pipe reducer $1.00-$10.00 USD/Piece
sanitary round shape eccentric welded reducer $0.40-$40.00 USD/Piece
sch40 black fitting concentric reducer $1.00-$10.00 USD/Piece
Concentric Reducer WP11 CL3,WP22 CL1,WP22 CL3,WP24,WP5 $10.00 USD/Piece
butt weld concentric reducer pipe fitting $0.50-$350.00 USD/Piece
schedule 80 carbon steel pipe fittings reducer $0.10-$90.00 USD/Piece
Gr2 Titanium pipe fitting Concentric Reducer $1.00-$20.00 USD/Piece
8 Inch Pipe Fittings Carbon Steel Speed Reducer $0.50 USD/Piece
titanium grade7 large threaded pipe fitting eccentric reducer $3.00-$60.00 USD/Piece
Welding Schedule 40 Steel Pipe Fittings Reducer $1.00-$999.00 USD/Piece
ASME/DIN/JIS Carbon Steel Pipe Reducer $0.10-$10.00 USD/Piece



Material of ASME B16.9 Reducer

  • Stainless Steel Reducer; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
  • Carbon Steel Reducer: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
  • Low Temperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6
  • Alloy Steel Reducer: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
  • Duplex Steel Reducer: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
  • Nickel Alloy Reducer: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS
  • 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )



concentric reducer standard

  • ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
  • DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
  • EN: EN10253-1, EN10253-2
  • ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
  • ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
  • ASME B16.25 – Buttwelding Ends ASME B16.28 – ‘Wrought Steel Short Radius Elbows and Buttwelding Returns
  • MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



Types Of Stainless Steel Reducer Availability:

  • Eccentric Reducer
  • Straight Pipe Reducer
  • Pipe Reducer
  • ASME B16.9 Reducer
  • Buttweld Reducer
  • ANSI B16.9 Reducer
  • ANSI B16.11 Reducer
  • Socket Weld To Threaded Reducer
  • Seamless Concentric Reducer
  • Socket Weld Eccentric Reducer
  • Concentric Reducer
  • Concentric Reducers Pipe
  • Reducers Pipe Fittings
  • Socket Weld Reducer Insert
  • Pipe Reducers
  • Welded Concentric Reducer Buttweld Fitting
  • Socket Weld Reducer
  • Butt Weld Concentric Reducer Buttweld Fitting
  • ERW Concentric Reducer Buttweld Fitting
  • ASME B16.11 Reducer
  • Reducers Pipeline
  • Seamless Concentric Reducer Buttweld Fitting
  • Threaded Eccentric Reducer
  • Concentric Reducer Pipe Fittings
  • Concentric Pipe Reducer
  • Threaded Reducer
  • Reducer Pipe Fittings
  • Threaded Pipe Reducer
  • Socket Reducer Adapter
  • Buttweld Concentric Reducer
  • Socket Weld Tee Reducer
  • Butt Weld Concentric Reducer
  • Pipe Reducer Fittings
  • Threaded Concentric Reducer
  • Steel Flanged Reducers
  • Fabricated Concentric Reducer Buttweld Fitting
  • Npt Reducers
  • Metric Reducers
  • Large Steel Pipe Reducers
  • Steel Tube Reducers
  • Butt Weld Pipe Reducers



What are the different types of ASME B16.9 Reducer ?

stainless steel flue pipe reducer

stainless steel flue pipe reducer

stainless steel eccentric pipe reducer

stainless steel eccentric pipe reducer

Concentric Reducer ASME B16.9

Concentric Reducer ASME B16.9

stainless steel stove pipe reducer

stainless steel stove pipe reducer

Concentric Reducer Type B

Concentric Reducer Type B

stainless steel exhaust pipe reducer

stainless steel exhaust pipe reducer

Concentric Reducer En 10253 2

Concentric Reducer En 10253 2

stainless steel pipe bell reducers

stainless steel pipe bell reducers

Eccentric Reducer Schedule 40

Eccentric Reducer Schedule 40

SS threaded concentric reducer

SS threaded concentric reducer

stainless steel tube reducer

stainless steel tube reducer

stainless steel flanged concentric reducer

stainless steel flanged concentric reducer



stainless steel pipe reducer sizes

Nominal
Pipe
Size
Outside
Diameter
Reducers
Reduced from
(inches)
(mm)
(inches)
Reduced to
(inches)
Concentric & Eccentric Length
(inches)
1/2
21.3
0.840
1/4
1 1/2
3/8
1 1/2
3/4
26.7
1.050
3/8
2
1/2
2
1
33.4
1.315
3/8
2
1/2
2
3/4
2
1 1/4
42.2
1.660
1/2
2
3/4
2
1
2
1 1/2
48.3
1.900
1/2
2 1/2
3/4
2 1/2
1
2 1/2
1 1/4
2 1/2
2
60.3
2.375
3/4
3
1
3
1 1/4
3
1 1/2
3
2 1/2
73.0
2.875
1
3 1/2
1 1/4
3 1/2
1 1/2
3 1/2
2
3 1/2
3
88.9
3.500
1
3 1/2
1 1/2
3 1/2
2
3 1/2
2 1/2
3 1/2
3 1/2
101.6
4.000
1 1/4
4
1 1/2
4
2
4
2 1/2
4
3
4
4
114.3
4.500
1 1/2
4
2
4
2 1/2
4
3
4
3 1/2
4
5
141.3
5.563
2
5
2 1/2
5
3
5
3 1/2
5
4
5
6
168.3
6.625
2 1/2
5 1/2
3
5 1/2
3 1/2
5 1/2
4
5 1/2
5
5 1/2
8
219.1
8.625
3
6
3 1/2
6
4
6
5
6
6
6
10
273.1
10.750
4
7
5
7
6
7
8
7
12
323.9
12.750
5
8
6
8
8 8
10 8



concentric reducer and eccentric reducer difference

Concentric reducers are widely used while eccentric reducers are applied to maintain the top and bottom pipe level. Eccentric Reducers also avoids trapping of air inside the pipe, and Concentric Reducer removes noise pollution.



pipe reducer pressure drop

Pressure drop coefficient for reducers, extension in direction of the flow

e.g.: C-REDC-GRC-KOVO

The pressure drop coefficient of extensions with a reduction in direction of the flow is determined as follows:

Pressure drop coefficient for reducers, extension in direction of the flow

A₁ = Area of the opening
A₂ = Area of the exit

Specifying a value here does not make sense due to the fact that the pressure drop coefficient can be anywhere between 1.5 and 5000.

Pressure drop coefficient for reducers, reduction in direction of the flow

e.g.: C-REDC-GRC-KOVO

The pressure drop coefficient of extensions with an extension in direction of the flow is determined as follows:

Exit opening (A₂) ⁄
Entry opening (A₁)

Pressure drop coefficient

   A₂ ⁄ A₁ = 0.8

   ζ = 0.15

   A₂ ⁄ A₁ = 0.6

   ζ = 0.25

   A₂ ⁄ A₁ = 0.4

   ζ = 0.35

   A₂ ⁄ A₁ = 0.2

   ζ = 0.42

A₁ = cross section of the opening
A₂ = cross section of the exit



 concentric reducer dimensions ansi b16 9 and ASME B16 9 Eccentric Reducer Dimensions

ANSI/ASME B16.9 Butt weld Concentric Reducer/ eccentric reducer offset dimensions:

concentric reducer dimensions ansi b16 9
ASME B16 9 Eccentric Reducer Dimensions



NPS
O.D.
D
O.D.
D1
Len
H
3/4-1/2
26.7
21.3
38
1-1/2
33.4
21.3
51
1-3/4
33.4
26.7
51
1.1/4-1/2
42.2
21.3
51
1.1/4-3/4
42.2
26.7
51
1.1/4-1
42.2
33.4
51
1.1/2-1/2
48.3
21.3
64
1.1/2-3/4
48.3
26.7
64
1.1/2-1
48.3
33.4
64
1.1/2-1.1/4
48.3
42.2
64
2-3/4
60.3
26.7
76
2-1
60.3
33.4
76
2-1.1/4
60.3
42.2
76
2-1.1/2
60.3
48.3
76
2.1/2-1
73
33.4
89
2.1/2-1.1/4
73
42.2
89
2.1/2-1.1/2
73
48.3
89
2.1/2-2
73
60.3
89
3-1.1/4
88.9
42.2
89
3-1.1/2
88.9
48.3
89
3-2
88.9
60.3
89
3-2.1/2
88.9
73
89
3.1/2-1.1/4
101.6
42.2
102
3.1/2-1.1/2
101.6
48.3
102
3.1/2-2
101.6
60.3
102
3.1/2-2.1/2
101.6
73
102
3.1/2-3
101.6
88.9
102
4-1.1/2
114.3
48.3
102
4-2
114.3
60.3
102
4-2.1/2
114.3
73
102
4-3
114.3
88.9
102
4-3.1/2
114.3
101.6
102
5-2
141.3
60.3
127
5-2.1/2
141.3
73
127
5-3
141.3
88.9
127
5-3.1/2
141.3
101.6
127
5-4
141.3
114.3
127
6-2.1/2
168.3
73
140
6-3
168.3
88.9
140
6-3.1/2
168.3
101.6
140
6-4
168.3
114.3
140
6-5
168.3
141.3
140
8-3.1/2
219.1
101.6
152
8-4
219.1
114.3
152
8-5
219.1
141.3
152
8-6
219.1
168.3
152
10-4
273
114.3
178
10-5
273
141.3
178
10-6
273
168.3
178
10-8
273
219.1
178
12-5
323.9
141.3
203
12-6
323.9
168.3
203
12-8
323.9
219.1
203
12-10
323.9
273
203
14-6
355.6
168.3
330
14-8
355.6
219.1
330
14-10
355.6
273
330
14-12
355.6
323.9
330
16-8
406.4
219
356
16-10
406.4
273
356
16-12
406.4
323.9
356
16-14
406.4
355.6
356
18-10
457
273
381
18-12
457
323.9
381
18-14
457
355.6
381
18-16
457
406.4
381
20-12
508
323.9
508
20-14
508
355.6
508
20-16
508
406.4
508
20-18
508
457
508
22-14
559
355.6
508
22-16
559
406.4
508
22-18
559
457
508
22-20
559
508
508
24-16
610
406.4
508
24-18
610
457
508
24-20
610
508
508
24-22
610
559
508
26-18
660
457
610
26-20
660
508
610
26-22
660
559
610
26-24
660
610
610
28-18
711
457
610
28-20
711
508
610
28-24
711
610
610
28-26
711
660
610
30-20
762
508
610
30-24
762
610
610
30-26
762
660
610
30-28
762
711
610
32-24
813
610
610
32-26
813
660
610
32-28
813
711
610
32-30
813
762
610
34-24
864
610
610
34-26
864
660
610
34-30
864
762
610
34-32
864
813
610
36-24
914
610
610
36-26
914
660
610
36-30
914
762
610
36-32
914
813
610
36-34
914
864
610
38-26
965
660
610
38-28
965
711
610
38-30
965
762
610
38-32
965
813
610
38-34
965
864
610
38-36
965
914
610
40-30
1016
762
610
40-32
1016
813
610
40-34
1016
864
610
40-36
1016
914
610
40-38
1016
965
610

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.



Dimensional Tolerances Of Concentric And Eccentric Reducers Asme B16.9

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
- 0.8
1.6 1.6 + 2.4
- 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End 3.2 4.8 + 6.4
- 4.8
+ 6.4
- 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.


Ready Stock To Dispatch

14 x 12 in. Schedule 10S 304L Stainless Steel Concentric Reducer
14 x 12 in. Schedule 10S 304L Stainless Steel Concentric Reducer
4 x 3 in. Schedule 10 Eccentric 304L Stainless Steel Reducer
4 x 3 in. Schedule 10 Eccentric 304L Stainless Steel Reducer
3 x 1-1/4 in. Schedule 40 Concentric 316L Stainless Steel Reducer
3 x 1-1/4 in. Schedule 40 Concentric 316L Stainless Steel Reducer
1-1/2 x 1 in. Schedule 10 Concentric 304L Stainless Steel Reducer
1-1/2 x 1 in. Schedule 10 Concentric 304L Stainless Steel Reducer
1 x 3/4 in. Butt Weld Schedule 10 316L Stainless Steel Eccentric Reducer
1 x 3/4 in. Butt Weld Schedule 10 316L Stainless Steel Eccentric Reducer
1-1/2 x 1-1/4 in. Butt Weld Schedule 10 304L Stainless Steel Concentric Reducer
1-1/2 x 1-1/4 in. Butt Weld Schedule 10 304L Stainless Steel Concentric Reducer
1-1/2 x 1/2 in. Butt Weld 316L Stainless Steel Concentric Reducer
1-1/2 x 1/2 in. Butt Weld 316L Stainless Steel Concentric Reducer
1 x 1/2 in. Butt Weld Schedule 40 304L Stainless Steel Concentric Reducer
1 x 1/2 in. Butt Weld Schedule 40 304L Stainless Steel Concentric Reducer



concentric reducer wall thickness

Nominal Pipe Size D X D1 Thickness
IN MM T X T1 Sch. 10 T X T1 Sch.40 T X T1 Sch. 80 H
3/4 x 1/2 20 x 15 267 x 21.3 2.11 x 2.11 2.87 x 2.77 3.91 x 3.73 51
1 x 3/4 25 x 20 33.4 x 26.7 2.77 x 2.11 3.38 x 2.87 4.55 x 3.91 51
1 x 1/2 25 x 15 33.4 x 21.3 2.77 x 2.11 3.38 x 2.77 4.55 x 3.73 51
11/4 x 01 32 x 25 42.2 x 33.4 2.77 x 2.77 3.56 x 3.38 4.85 x 4.55 51
11/4 x 3/4 32 x 20 42.2 x 26.7 2.77 x 2.11 3.56 x 2.87 4.85 x 3.91 51
11/4 x 1/2 32 x 15 42.2 x 21.3 2.77 x 2.11 3.56 x 2.77 4.85 x 3.73 51
1 1/2 x 11/4 40 x 32 48.3 x 42.2 2.77 x 2.77 3.68 x 3.56 5.08 x 4.85 64
1 1/2 x 01 40 x 25 48.3 x 33.4 2.77 x 2.77 3.68 x 3.38 5.08 x 4,55 64
1 1/2 x 3/4 40 x 20 48.3 x 66.7 2.77 x 2.11 3.68 x 2.87 5.08 x 3.91 64
1 1/2 x 1/2 40 x 15 48.3 x 21.3 2.77 x 2.11 3.68 x 2.77 5.08 x 3.73 64
2.0 x 1 1/2 50 x 40 60.3 x 48.3 2.77 x 2.77 3.90 x 3.68 5.55 x 5.08 76
2.0 x 1 1/4 50 x 35 60.3 x 42.2 2.77 x 2.77 3.90 x 3.56 5.55 x 4.85 76
2.0 x 0.1 50 x 25 60.3 x 33.4 2.77 x 2.77 3.90 x 3.38 5.55 x 4.55 76
2.0 x 3/4 50 x 20 60.3 x 26.7 2.77 x 2.11 3.90 x 2.87 5.55 x 3.91 76
2 1/2 x 2.0 65 x 50 73.0 x 60.3 3.05 x 2.77 5.16 x 3.90 7.01 x 5.55 89
2 1/2 x 11/2 65 x 40 73.0 x 48.3 3.05 x 2.77 5.16 x 3.68 7.01 x 5.08 89
2 1/2 x 1.0 65 x 25 73.0 x 33.4 3.05 x 2.77 5.16 x 3.38 7.01 x 4.55 89
3.0 x 2 1/2 80 x 65 88.9 x 73.0 3.05 x 3.05 ! 5.5 x 5.16 7.62 x 7.01 89
3.0 x 0.2 80 x 50 88.9 x 60.3 3.05 x 2.77 5.5 x 3.09 7.62 x 5.55 89
3.0 x 1 1/2 80 x 40 88.9 x 48.3 3.05 x 2.77 5.5 x 3.68 7.62 x 5.08 89
3.0 x 11/4 80 x 32 88.9 x 42.2 3.05 x 2.77 5.5 x 3.56 7.62 x 4.85 89
4.0 x 3.0 100 x 80 114.3 x 88.9 3.05 x 3.05 6.0 x 5.05 8.55 x 7.62 102
4.0 x 2 1/2 100 x 65 114.3 x 73.0 3.05 x 3.05 6.0 x 5.16 8.55 x 7.01 102
4.0 x 2.0 100 x 50 114.3 x 60.3 3.05 x 2.77 6.0 x 3.09 8.55 x 5.55 102
4.0 x 1 1/2 100 x 40 114.3 x 48.3 3.05 x 2.77 6.0 x 3.68 8.55 x 5.08 102
5.0 x 4.0 125 x 100 141.3 x 114.3 3.40 x 3.05 6.55 x 6.0 127
5 x 3 125 x 80 141.3 x 88.9 3.40 x 3.05 6.55 x 05.05 09.53 x 07.06 127
5 x 21/2 125 x 65 141.3 x 73.0 3.40 x 3.05 6.55 x 05.16 09.53 x 07.01 127
5 x 2 125 x 50 141.3 x 60.3 3.40 x 2.77 6.55 x 03.09 09.53 x 05.55 127
6 x 5 150 x 125 168.3 x 141.3 3.40 x 3.40 7.11 x 06.55 10.97 x 09.53 140
6 x 4 150 x 100 168.3 x 114.3 3.40 x 3.05 7.11 x 06.00 10.97 x 08.55 140
6 x 3 150 x 80 168.3 x 88.9 3.40 x 3.05 7.11 x 05.05 10.97 x 07.06 140
6 x 2 1/2 150 x 65 168.3 x 73.0 3.40 x 2.77 7.11 x 05.16 10.97 x 07.01 140
8 x 6 200 x 150 219.1 x 168.3 3.76 x 3.40 8.02 x 07.11 12.07 x 10.97 152
8 x 5 200 x 125 219.1 x 141.3 3.76 x 3.40 8.02 x 06.55 12.07 x 09.53 152
8 x 4 200 x 100 219.1 x 114.3 3.76 x 3.05 8.02 x 06.00 12.07 x 08.55 152
10 x 8 250 x 200 273.0 x 219.1 4.19 x 3.76 9.27 x 06.00 15.09 x 12.70 178
10 x 6 250 x 150 273.0 x 168.3 4.19 x 3.40 9.27 x 07.11 15.09 x 10.97 178
10 x 5 250 x 125 273.0 x 141,3 4.19 x 3.40 9.27 x 06.55 15.09 x 09.53 178
10 x 4 250 x 100 273.0 x 114.3 4.19 x 3.05 9.27 x 06.02 15.09 x 08.56 178
12 x 10 300 x 250 323.9 x 273.0 4.57 x 4.19 10.31 x 09.27 17.48 x 15.09 203
12 x 8 300 x 200 323.9 x 219.1 4.57 x 3.76 10.31 x 08.20 17.48 x 12.07 203
12 x 6 300 x 150 323.9 x 168.3 4.57 x 3.40 10.31 x 07.11 17.48 x 10.97 203
12 x 5 300 x 125 323.9 x 141.3 4.57 x 3.40 10.31 x 06.55 17.48 x 09.53 203
14 x 12 350 x 300 355.6 x 323.9 4.78 x 4.57 11.13 x 10.31 19.05 x 17.48 330
14 x 10 350 x 250 355.6 x 273.0 4.78 x 4.19 11.13 x 09.27 19.05 x 15.09 330
14 x 08 350 x 200 355.6 x 219.1 4.78 x 3.76 11.13 x 08.20 19.05 x 12.07 330
14 x 06 350 x 150 355.6 x 168.3 4.78 x 3.40 | 11.13 x 07.11 19.05 x 10.97 330
16 x 14 400 x 350 406.4 x 355.6 4.78 x 4.78 12.70 x 11.13 21.44 x 19.05 356
16 x 12 400 x 300 406.4 x 323.9 4.78 x 4.57 12.70 x 10.31 21.44 x 17.48 356
16 x 10 400 x 250 406.4 x 273.0 4.78 x 4.19 12.70 x 09.27 21.44 x 15.09 356
16 x 08 400 x 200 406.4 x 219.1 4.78 x 3.76 12.70 x 08.20 21.44 x 12.07 356
16 x 06 400 x 150 406.4 x 168.3 4.78 x 3.40 12.70 x 07.11 21.44 x 12.07 356
18 x 16 450 x 400 457.2 x 406.4 4.78 x 4.78 14.27 x 12.70 23.83 x 21.44 381
18 x 14 450 x 350 457.2 x 355.6 4.78 x 4.78 14.27 x 11.13 23.83 x 19.05 381
18 x 12 450 x 300 i 457.2 x 323.9 4.78 x 4.78 14.27 x 10.31 23.83 x 17.48 381
18 x 10 450 x 250 457.2 x 273.0 4.78 x 4.19 14.27 x 09.27 23.83 x 15.09 381
18 x 08 450 x 150 457.2 x 219.1 4.78 x 3.76 14.27 x 08.20 23.83 x 12.07 381
20 x 18 500 x 450 508.0 x 457.2 5.54 x 4.78 15.09 X 14.27 26.19 x 23.83 508
20 x 16 500 x 400 508.0 x 406.4 5.54 x 4.78 15.09 x 1270 26.19 x 21.44 508
20 x 14 500 x 350 508.0 x 355.6 5.54 x 4.78 15.09 x 11.13 | 26.19 x 19.05 508
20 x 12 500 x 300 508.0 x 323.9 5.54 x 4.78 15.09 x 10.31 26.19 x 17.48 508
20 x 10 500 x 250 508.0 x 273.0 5.54 x 4.19 15.09 x 09.27 26.19 x 15.09 508
20 x 08 500 x 200 508.0 x 219.1 5.54 x 3.76 15.09 x 08.20 26.19 x 12.07 508
24 x 20 600 x 500 610.0 x 508.0 6.35 x 5.54 17.48 x 15.09 30.96 x 26.19 508
24 x 18 600 x 450 610.0 x 457.2 6.35 x 4.78 17.18 x 14.27 30.96 x 23.83 508
24 x 16 600 x 400 610.0 x 406.4 6.35 x 4.78 17.48 x 12.70 30.96 x 21.44 508
24 x 14 600 x 350 610.0 x 355.6 6.35 x 4.78 17.48 x 11.13 30.96 x 19.05 508
24 x 12 600 x 300 610.0 x 323.9 6.35 x 4.78 17.48 x 10.31 30.96 x 17.48 508
24 x 10 600 x 250 610.0 x 273.0 6.35 x 4.19 17.48 x 09.27 13.96 x 15.09 508



weldable pipe reducer Weight Chart

The weight chart of butt weld reducer is covering the size from 3/4 inch to 24 inch, and available in Schedule 20, STD, 40, 80, 120, 160.

Nominal Size SCH20 STD SCH40S SCH80S SCH120 SCH160
DN NPS
15 1/2 0.08 0.08 0.1
20 3/4 0.17 0.17 0.2
25 1 0.21 0.21 0.25 0.22
32 1 1/4 0.29 0.29 0.35
40 1 1/2 0.42 0.42 0.58 0.6
50 2 0.8 0.8 1.03 1.04
65 2 1/2 1.05 1.05 1.42 1.65
80 3 1.36 1.36 1.9
90 3 1/2 1.63 1.63 2.27 2.4
100 4 2.77 2.77 3.93 4.4
125 5 3.96 3.96 6 7.14
150 6 6.31 6.31 9.26 10.8
200 8 7.85 10.7 10.7 17.5 15 18.4
250 10 11.2 15.8 16.3 25.1 25.1 32.5
300 12 25.6 28.8 32.1 56.5 41.7 53.3
350 14 30.5 38.5 48.8 79 84.5 106
400 16 35.2 44.5 64.3 102 112 143
450 18 62.7 62.7 98.5 165
500 20 72.6 72.6 181
550 22 97 79.1 142 226
600 24 130 100


pipe reducer fabrication formula

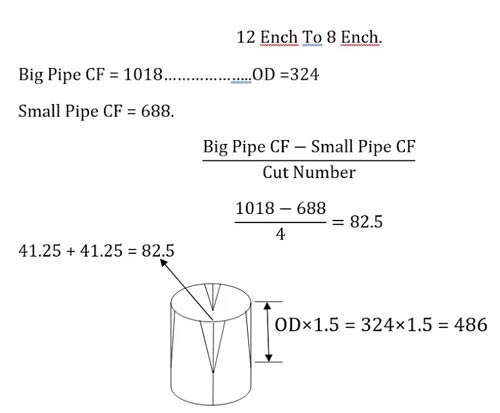

pipe reducer fabrication formula



stainless steel pipe reducer for sale

  • Austenitic Stainless Steels Reducer Pipe Fittings
  • High Yield Buttweld Reducer Fittings
  • Austenitic stainless Steels Reducer Pipe Fittings
  • ASME / ANSI - B 16.9 Reducer Pipe Fittings
  • Low Tempreture Concentric & Eccentric Reducer
  • ANSI B16.28 Eccentric Reducer
  • MSS SP-43 Butt Weld Reducer
  • Galvanized Reducer (Concentric & Eccentric )
  • Concentric & Eccentric Reducer
  •  MSS SP-48 Welded Reducer Fittings
  • ASME / ANSI - B 16.9 Concentric Reducer
  • ASME B16.25 Reducer
  • Stainless Steel Buttweld Reducer Fittings
  • MSS SP-43 Eccentric (Bell) Reducer
  • ASME B16.25 Concentric & Eccentric Reducer
  • Alloy Steel Reducer
  • ASME B16.28 Seamless Reducer Fittings
  • Concentric Reducer Butt Weld Pipe Fittings
  • Eccentric Reducer Butt Weld Pipe Fittings
  • Fabricated Buttweld Reducer
  • Duplex Steel Reducer Pipe Fittings
  • Buttwelding Fittings MSS SP-75 Reducer

Value Added Service of ASME B16.9 Reducer

Material Testing:
  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test

Test Certificates:

  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc





We Are Dedicated Eccentric Reducer Schedule 40, concentric reducer stainless steel supplier, wholesaler of Stainless Steel Eccentric Reducer B16.9, stainless steel threaded concentric reducer, Trader of stainless steel pipe bell reducers, Check Carbon Steel Eccentric Reducer Material online



Stainless Steel Pipe reducer Application Industries

  • Pulp/paper
  • Textile
  • Gas compression and distribution industries
  • Refining
  • Marine
  • Industrial equipment
  • Automotive
  • Petroleum
  • Waste treatment
  • Utilities/power generation
  • Chemical processing
Application Industries



Most Trusted And Reliable stainless steel stove pipe reducer Stockholder, Buy ASME B16 9 Concentric Reducers, MS Eccentric Reducer at dealer price, importer of Concentric Reducer Fitting, check stainless steel pipe reducer sizes and concentric reducer weight



© 2020 RELIABLE PIPES & TUBES LTD. All rights reserved.
Website Designed & SEO by Mesotek
