Api 5ct Pipe

Api 5ct Casing Pipe Manufacturers

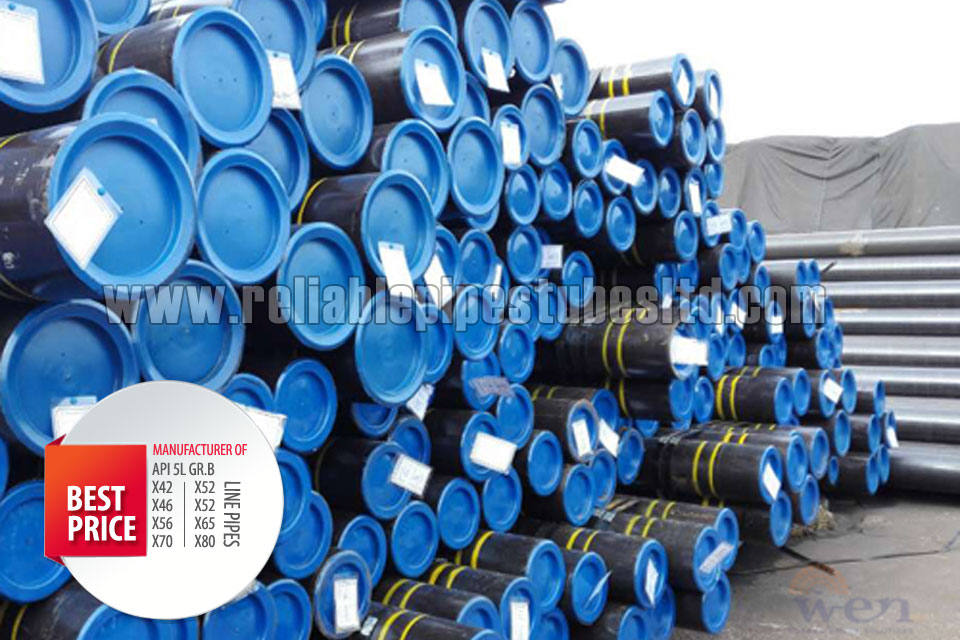

API 5CT Seamless Steel Pipe Casing and Tube, API 5L Grade B X42, API 5L Line Pipes manufacturer & suppliers

API 5ct Pipe is a specification of pipes that are used for casing or tubing in industrial gas lines and in tube well. There are different levels of specification such as PSL1, 2 and 3. The Api 5ct Pipe has different carbon and chromium contents in the different product specification levels. [Company Name] is one of the leading Steel Casing Pipe Manufacturers producing all product specifications. These are used in transportation of oil and gas, water and other fluids as necessary. The Api 5ct Pipe Sizes vary in diameter, wall thickness and length. The outer diameter ranges from 6mm to 219mm, the wall thickness ranges from 1mm to 30mm and the length ranges up to 12000mm. The Api 5ct Casing Pipe comes in different steel grades.

The grades include J55, K55, N80, L80 and P110. These are different mechanical property oriented grades. The pipes come in different connection types as well. The Api-5ct Pipe Specification includes short round threaded, non – upset tubing, integral joint tubing, external upset tubing, extreme line casing, buttress thread casing and long round thread casing as well. The Api 5ct Pipe Price varies based on the grade, diameter, wall thickness and length of the pipes. Please contact us to know more about these pipe products.



API 5ct api casing pipe and tubing for oil burner

Outer Diameter

Wall Thickness

Length

Inch

mm

mm

meter

1/2″

21.3mm

0.6mm-3.0mm

0.3m-12m

3/4″

26.9mm

0.6mm-3.0mm

0.3m-12m

1″

33.4mm

1.0mm-3.0mm

0.3m-12m

1-1/4″

42.3mm

1.0mm-4.0mm

0.3m-12m

1-1/2″

48.3mm

1.0mm-4.0mm

0.3m-12m

2″

60.3mm

1.5mm-4.0mm

0.3m-12m

2-1/2″

76.1mm

1.5mm-4.0mm

0.3m-12m

3″

88.9mm

1.5mm-9.5mm

0.3m-12m

4″

114.3mm

2.0mm-9.5mm

0.3m-12m

5″

141.3mm

3.0mm-9.5mm

0.3m-12m

6″

168.3mm

3.0mm-12.0mm

1.0m-12m

8″

219.1mm

3.2mm-12.0mm

1.0m-12m

10″

273mm

3.2mm-12.0mm

1.0m-12m

12″

323.8mm

6.0mm-15.0mm

1.0m-12m

14″

355.6mm

8.0mm-15.0mm

1.0m-12m

16″

406.4mm

8.0mm-20.0mm

1.0m-12m




We have a huge inventory of Steel Casing Pipe in different sizes buy online, check Api-5ct Pipe Specification



API 5CT Seamless Steel Pipe Casing and Tube Specifications

Standard: API SPEC 5CT

API 5CT pipe Size (mm):

·  Outer Dimensions: 6.0mm – 219.0mm
·  Wall Thickness: 1.0mm – 30 mm
·  Length: max 12000mm

Application: gas, water and oil transportation in both oil and natural gas .

The main steel grade of API 5CT:

API 5CT J55, API 5CT K55, API 5CT N80, API 5CT L80, API 5CT P110.

Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers’ requirements .

 This International Standard is applicable to the following connections in accordance with ISO 10422 or API Spec 5B:

  • short round thread casing (STC);
  • long round thread casing (LC);
  • buttress thread casing (BC);
  • extreme-line casing (XC);
  • non-upset tubing (NU);
  • external upset tubing (EU);
  • integral joint tubing (IJ).



Product size of 9 5/8" API 5ct OCTG steel casing pipe

Casing Size

Type of end finish

Outter Diameter

Wall Thickness

H40

J55
K55

M65

L80

N801
N80Q

C90
T95

P110

Q125

Inch

mm

Inch

mm

4 1/2

114.30

0.205

5.21

PS

PS

PS

/

/

/

/

/

0.224

5.69

/ /

PSB

PSB

/

/

/

/

0.250

6.35

PSLB

PLB

PLB

PLB

P

PLB

/

0.290

7.37

/

PLB

PLB

P

PLB

/

0.337

8.56

/

/

/

/

PLB

PLB

5

127.00

0.220

5.59

PS

PS

/

/

/

/

/

0.253

6.43

PSLB

PSLB

/

/

/

/

/

0.296

7.52

PLB

PLB

PLB

PLB

PLB

/

0.362

9.19

/

PLB

0.437

11.10

0.478

12.14

/

0.500

12.70

/

5 1/2

139.70

0.244

6.20

PS

PS

PS

/

/

/

/

/

0.275

6.98

/

PSLB

PSLB

/

/

/

/

0.304

7.72

PLB

PLB

PLB

PLB

PLB

0.361

9.17

/

0.415

10.51

PLB

0.500

12.70

/ / /

P

/ /

0.562

14.27

0.625

15.88

0.687

17.45

0.750

19.05

0.812

20.62

0.875

22.22

Note:

1) P stand for plain, S-short round thread, L-long round thread and B-buttress thread.

2) We can offer 114.3-660.4mm size range casing tubing, above shown size is only partial size, if you need further size information, pls contact with us freely.

3) Other customized pipe size can also be provided after consulting with customers.




Chemical Composition of Steel Casing Pipe

Grade

C≤

Si≤

Mn≤

P≤

S≤

Cr≤

Ni≤

Cu≤

Mo≤

V≤

Als≤

API 5CT J55

0.34-0.39

0.20-0.35

1.25-1.50

0.020

0.015

0.15

0.20

0.20

/

/

0.020

API 5CT  K55

0.34-0.39

0.20-0.35

1.25-1.50

0.020

0.015

0.15

0.20

0.20

/

/

0.020

API 5CT N80

0.34-0.38

0.20-0.35

1.45-1.70

0.020

0.015

0.15

/

/

/

0.11-0.16

0.020

API 5CT  L80

0.15-0.22

1.00

0.25-1.00

0.020

0.010

12.0-14.0

0.20

0.20

/

/

0.020

API 5CT J P110

0.26-035

0.17-0.37

0.40-0.70

0.020

0.010

0.80-1.10

0.20

0.20

0.15-0.25

0.08

0.020



Mechanical Properties of API 5CT Pipe

Steel Grade

Yield Strength (Mpa)

Tensile Strength (Mpa)

API 5CT J55

379-552

≥517

API 5CT K55

≥655

≥517

API 5CT N80

552-758

≥689

API 5CT L80

552-655

≥655

API 5CT P110

758-965

≥862



API 5CT P110 Casing Tubing Tensile & Hardness Requirement

Group Grade Type Total elongation under load % Yield strength MPa Tensile strength min. MPa Hardness a max. Specified wall thickness mm Allowable hardness variation b HRC
min. max .   HRC HBW
1 2 3 4 5 6 7 8 9 10 11
1 H40 - 0.5 276 552 414 - - - -
J55 - 0.5 379 552 517 - - - -
K55 - 0.5 379 552 655 - - - -
N80 1 0.5 552 758 689 - - - -
N80 Q 0.5 552 758 689 - - - -
R95 - 0.5 655 758 724 - - - -
2 M65 - 0.5 448 586 586 22 235 - -
L80 1 0.5 552 655 655 23 241 - -
L80 9Cr 0.5 552 655 655 23 241 - -
L80 13Cr 0.5 552 655 655 23 241 - -
C90 1 0.5 621 724 689 25.4 255 ≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40 3.0 4.0 5.0 6.0
T95 1 0.5 655 758 724 25.4 255 ≤ 12.70 12.71 to 19.04 19.05 to 25.39 ≥ 25.40 3.0 4.0 5.0 6.0
C110 - 0.7 758 828 793 30 286 ≤ 12.70 12.71 to 19.04 19.05 to 25.39. ≥ 25.40 3.0 4.0 5.0 6.0
3 P110 - 0.6 758 965 862 - - - -
4 Q125 1 0.65 862 1034 931 b - ≤ 12.70 12.71 to 19.04 ≥ 19.05 3.0 4.0 5.0
a In case of dispute, laboratory Rockwell C hardness testing shall be used as the referee method.
b No hardness limits are specified, but the maximum variation is restricted in accordance with 7.8 and 7.9 of API Spec. 5CT.



API 5CT GR.L80 Pipe Dimension Tolerance
Types of steel tubes Outer Diameter Wall Thickness
Cold-rolled tubes Tube sizes(mm) Tolerances(mm) Tolerances(mm)
<114.3 ±0.79 -12.5%
≥114.3 -0.5%,+1%



110 Casing Tubing Dimensions
Pipe Casing Sizes, Oilfield Casing Sizes & Casing Drift Sizes
Outer Diameter (Casing Pipe Sizes) 4 1/2"-20", (114.3-508mm)
Standard Casing Sizes 4 1/2"-20", (114.3-508mm)
Thread Type Buttress thread casing, Long round thread casing, Short round thread casing
Function It can protect the tubing pipe.



API 5CT Grade P110 Casing Tubing Steel Color Code
Name J55 K55 N80-1 N80-Q L80-1 P110
Casing a bright green band two bright green bands a bright red band a bright red band + a green band a red band + a brown band a bright white band
Coupling entire green coupling + a white band entire green coupling entire red coupling entire red coupling + a green band entire red coupling + a brown band entire white coupling



ISO/API casing/ API 5CT P110 Casing Tubing specifications
Codea Outer Dia Nominal weight
(with thread and
coupling) b,c
Wall Thickness End processing type
mm kg/m mm H40 J55 M65 L80 N801 C90d P110 Q125d
In Lb/ft K55 C95 N80Q T95d
1 2 3 4 5 6 7 8 9 10 11 12 13
4-1-2 9.5 114.3 14.14 5.21 S S S - - - - -
4-1-2 10.5 114.3 15.63 5.69 - SB SB - - - - -
4-1-2 11.6 114.3 17.26 6.35 - SLB - LB - - LB -
4-1-2 13.5 114.3 20.09 7.37 - - LB - LB - - -
4-1-2 15.1 114.3 22.47 8.56 - - - - - - LB LB
5 11.5 127 17.11 5.59 - S S - - - - -
5 13 127 19.35 6.43 - SLB SLB - - - - -
5 15 127 22.32 7.52 - SLB - LB - LB - -
5 18 127 26.79 9.19 - - LB - LB - - LB
5 21.4 127 31.85 11.1 - - - - LB LB - LB
5 23.2 127 34.53 12.14 - - - LB - - LB -
5 24.1 127 35.86 12.7 - - - LB - - LB -
5-1-2 14 139.7 20.83 6.2 S S S - - - - -
5-1-2 15.5 139.7 23.07 6.98 - SLB SLB - - - - -
5-1-2 17 139.7 25.3 7.72 - SLB LB - LB - LB -
5-1-2 20 139.7 29.76 9.17 - - - - LB LB - -
5-1-2 23 139.7 34.23 10.54 - - LB L-B - LB LB -
6-5-8 20 168.28 29.76 7.32 S SLB SLB - - - - -
6-5-8 24 168.28 35.72 8.94 - SLB LB - - LB LB -
6-5-8 28 168.28 41.67 10.59 - - LB LB - - LB -
6-5-8 32 168.28 47.62 12.06 - - - - - LB LB LB
7 17 177.8 25.3 5.87 S - - - - - - -
7 20 177.8 29.76 6.91 S S S - - - - -
7 23 177.8 34.23 8.05 - SLB - - LB LB - -
7 26 177.8 38.69 9.19 - SLB - - LB LB LB -
7 29 177.8 43.16 10.36 - - LB - LB - - -
7 32 177.8 47.62 11.51 - - LB - LB LB - -
7 35 177.8 52.09 12.65 - - - - LB - - LB
7-5-8 24 193.68 35.72 7.62 S - - - - - - -
7-5-8 26.4 193.68 39.29 8.33 - SLB SLB - LB - LB -
7-5-8 29.7 193.68 44.2 9.52 - - LB - - LB LB -
7-5-8 33.7 193.68 50.15 10.92 - - LB - - LB - -
7-5-8 39 193.68 58.04 12.7 - - - LB - - LB -
7-5-8 42.8 193.68 63.69 14.27 - - - LB - LB - -
7-5-8 45.3 193.68 67.41 15.11 - - - LB - - LB -
7-5-8 47.1 193.68 70.09 15.88 - - - - LB - - LB
8-5-8 24 219.08 35.72 6.71 - S S - - - - -
8-5-8 28 219.08 41.67 7.72 S - S - - - - -
8-5-8 32 219.08 47.62 8.94 S SLB SLB - - - - -
8-5-8 36 219.08 53.57 10.16 - SLB SLB - LB LB - -
8-5-8 40 219.08 59.53 11.43 - - LB - - LB - -
8-5-8 44 219.08 65.48 12.7 - - - LB - LB -
8-5-8 49 219.08 72.92 14.15 - - - LB - - LB -
